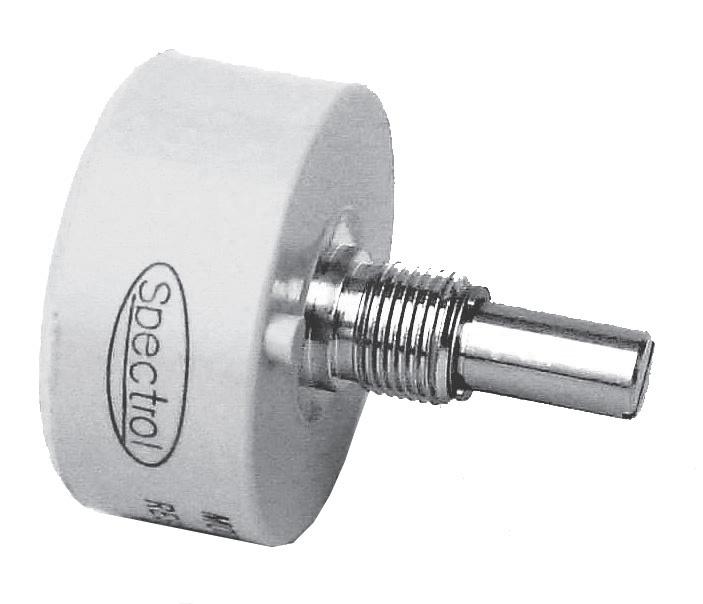

Vishay 13200203 Single Turn Wirewound Potentiometer
The Vishay Spectrol 132-0-0-203 is a robust, single-turn wirewound potentiometer designed for industrial applications. This potentiometer offers a bushing mount, continuous rotation, and a wide electrical angle, making it suitable for various control and adjustment tasks. It features a molded glass-filled thermoplastic housing, a stainless steel shaft, and brass terminals plated for solderability. The potentiometer's linearity and resistance tolerance are customizable to meet specific application requirements. Its robust construction and environmental specifications ensure reliable performance in demanding industrial environments.
Vishay 13200203 Single Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, single turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 15/16"(33.3 mm)
- Total Resistance Tolerance: 50 and Above: STANDARD 5 to 20 k ± 3 % ± 5 %; SPECIAL to 35 k ± 1 % ± 3 %
- Linearity (independent): Total Resistance 5 to 20: STANDARD ± 1.0 %; 20 to 200: STANDARD ± 1.0 %; 200 and above: STANDARD ± 0.5 %
- Noise: 100ENR
- Power Rating: 40 °C ambient 2.75 W derated to zero at 125 °C
- Electrical Angle: Continuous Rotation: 352° ± 2°; Stops: 340° ± 5°
- Insulation Resistance: 1000 M minimum at 500 VDC
- Dielectric Strength: 1000 VRMS,60 Hz
- Absolute Minimum Resistance: 1.0 % of total resistance or 0.5 W whichever is greater
- Minimum Voltage: 0.5 % maximum
- Temperature Coefficient of Resistance: Refer to standard resistance element data
- Housing: Molded glass filled thermoplastic
- Rear Lid: Glass filled thermoset plastic
- Shaft: Stainless steel, non-magnetic
- Terminals: Brass, plated for solderability, Non-passivated
- Mount Hardware: Lockwasher Internal Tooth: Steel, nickel plated; Panel Nut: Brass, nickel plated
- Vibration: 15 g thru 2000 Hz
- Shock: 50 g
- Salt Spray: 48 h
- Rotational Life: 500 000 Shaft Revolutions
- Operating Temperature Range: - 55 °C to + 125 °C
- Rotation: 360° (continuous) or 340° ± 5° (stops)
- Bearing Type: Sleeve
- Starting Torque: 1.0 oz. - in (72g- cm)
- Running Torque: 0.7 oz. - in (50.40g- cm)
- Shaft Runout (TIR): 0.002" (0.05 mm)
- Pilot Dia. Runout (TIR): 0.003" (0.08 mm)
- Lateral Runout (TIR): 0.005" (0.13 mm)
- Shaft End Play: 0.008" (0.20 mm)
- Shaft Radial Play: 0.003" (0.08 mm)
- Weight: 1.0 oz. maximum (28.35g)
- Stop Strength: 8.0 in - lbs (9.21 kg- cm) (stops version only)
