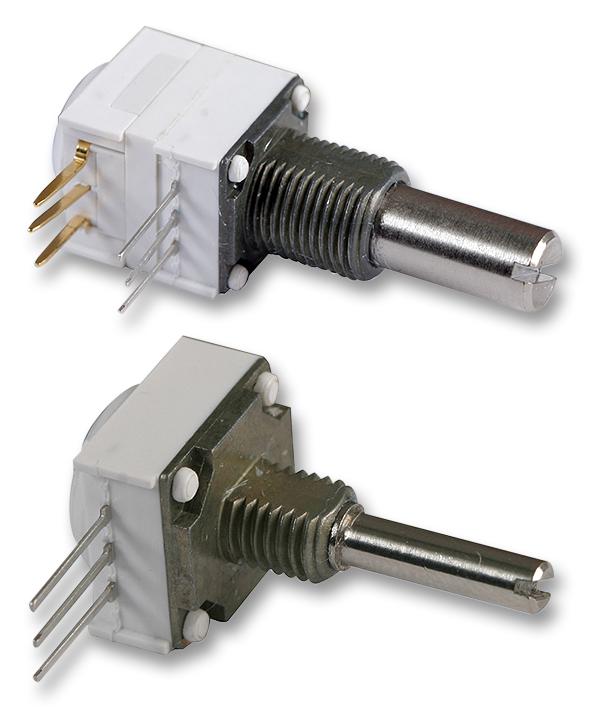

Vishay 14821F0GJSX13102KA Conductive Plastic and Cermet Potentiometer
The 14821F0GJSX13102KA is a high-precision conductive plastic and cermet potentiometer designed for robust performance in electronic control applications. It features a 300° mechanical travel with low rotational torque, making it ideal for precise adjustments. The potentiometer offers a resistance range from 1kΩ to 1MΩ, with a linearity of 5% and a non-linear variation of 20%. Its sealed IP64 construction ensures reliability in harsh environments, suitable for industrial automation, audio equipment, and instrumentation. The device includes dual or triple sections with solder lug terminals for versatile mounting options, and a temperature range from -40°C to +125°C, ensuring durability across varied operating conditions.
Vishay 14821F0GJSX13102KA Conductive Plastic and Cermet Potentiometer Specifications:
- Resistance Range: 1kΩ to 1MΩ
- Linearity: 5%
- Tolerance: 10% for linear, 20% on request for non-linear
- Power Rating: 0W at 70°C, derates by 50% for PC mount
- Mechanical Travel: 300° ± 5°
- Operating Temperature: -40°C to +125°C
- Sealing: IP64
- Effective Rotation: 270° + 10° without switch, 240° + 10° with switch
- Contact Resistance Variation: 1.5% of total resistance
- Maximum Working Voltage: 350 Vac across end terminals
- End Resistance: ≤4Ω each end
- Mechanical End Stop Torque: 2.1 Ib-in max
- Environmental Durability: 50,000 cycles mechanical endurance, temperature cycling, load life of 1000 hours at 70°C
- Materials: Conductive plastic, cermet element, gold plated terminals
- Weight: Approx. 0.19 oz (single), 0.27 oz (dual), 0.35 oz (triple)
Buy the Vishay Series 1481 Conductive Plastic and Cermet Potentiometer: 14821F0GJSX13102KA
Discover the reliable and precise Vishay Series 1481 potentiometer with IP64 sealing, resistance options up to 1MΩ, and a wide temperature range. Perfect for industrial automation, audio, and instrumentation, it offers excellent linearity and durability. With dual and triple sections, solder lug terminals, and robust construction, this device guarantees long-term performance in demanding environments. Purchase online today to enhance your electronic controls with high-quality, dependable components designed for precision and longevity.
Order your Vishay Series 1481 Conductive Plastic and Cermet Potentiometer today and ensure your electronic projects benefit from high durability and precise control.
Frequently Asked Questions
Where can I buy Vishay 14821F0GJSX13102KA?
You can click on the BUY or RFQ button to purchase 14821F0GJSX13102KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14821F0GJSX13102KA?
You can download the 14821F0GJSX13102KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14821F0GJSX13102KA?
Vishay
