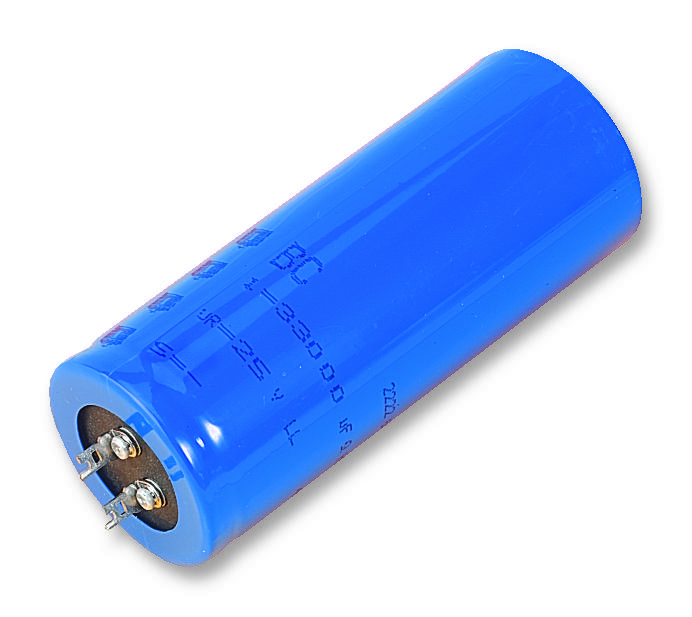

Vishay MAL205016103E3 Aluminum Capacitor
The Vishay BCcomponents aluminum electrolytic capacitors from the 050/052 series offer a long useful life of up to 15,000 hours at 85°C, with low ESR and high ripple current capabilities, making them ideal for smoothing, filtering, energy storage, and industrial applications. They feature polarized aluminum electrolytic construction, are RoHS compliant, and come in cylindrical aluminum cases with blue insulation sleeves, providing high resistance to shock and vibration. Available in various case sizes, these capacitors ensure high reliability in power supplies, telecommunication, and electronic systems.
Vishay MAL205016103E3 Aluminum Capacitor Specifications:
- Case Sizes: 25x30 mm to 40x100 mm
- Capacitance Range: 470uF to 47000uF
- Rated Voltage: 10V to 400V
- Temperature Range: -40°C to +85°C
- Endurance: 5000 hours at 85°C, useful life up to 15,000 hours
- Ripple Current: Up to 95mA at 100Hz, varies with size
- Leakage Current: ≤ 0.006 Cr x Un + 4uA after 1 min
- Impedance: Max 25-35mΩ at 100Hz, varies with size
- ESR: Max 25-35mΩ at 100Hz, temperature-dependent
- Construction: Polarized aluminum electrolytic, RoHS compliant
- Case Material: Cylindrical aluminum, blue sleeve insulation
- Vibration & Shock Resistance: High
- Available Forms: PCB mounting, Solder-lug, and pin versions
- Climatic Category: IEC 60068 40/085/56
Buy the Buy Vishay BCcomponents Aluminum Capacitors Part Number MAL205016103E3 Online
Purchase the Vishay BCcomponents aluminum electrolytic capacitor MAL205016103E3 easily online. Designed for durability and high performance, it offers long life up to 15,000 hours at 85°C, low ESR, and excellent ripple current capabilities for use in power supplies, telecommunication, and industrial electronics. Available in various case sizes and mounting options, this capacitor ensures reliable energy storage, filtering, and power smoothing in demanding environments. Buy now to ensure optimal performance in your electronic systems.
Get Vishay BCcomponents aluminum electrolytic capacitor MAL205016103E3 today—long-lasting, high ripple current, and reliable for power and industrial systems.
Frequently Asked Questions
Where can I buy Vishay MAL205016103E3?
You can click on the BUY or RFQ button to purchase MAL205016103E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL205016103E3?
You can download the MAL205016103E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL205016103E3?
Vishay
