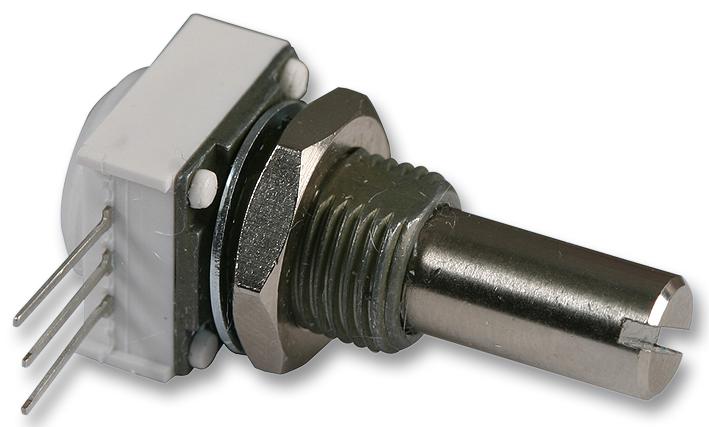

Vishay 14910A0BHSX10103KA Conductive Cermet Potentiometer
Vishay Spectrol conductive plastic and cermet potentiometers are robust, high-quality rotary devices designed for precise resistance adjustment. Featuring up to 50,000 cycles rotational life and RoHS compliance, they accommodate multiple sections with support plates, rotary switches, and solder lug terminals. These potentiometers operate with low temperature coefficients, offer various resistance ranges from 100 ohms to 2 megaohms, and possess a 270° + 10° effective rotation. Suitable for automation, control systems, and industrial equipment requiring durable, reliable electrical components.
Vishay 14910A0BHSX10103KA Conductive Cermet Potentiometer Specifications:
- Resistance Range: 100Ω to 2MΩ
- Resistance Tolerance: 10%
- Resistance Linearity: ±5%
- Power Rating: 0W at 70-150°C
- Effective Rotation: 270° + 10°
- Mechanical Travel: 300° + 5°
- Contact Resistance Variation: 1.5% of total resistance
- Maximum Working Voltage: 350 Vac
- Dielectric Withstanding Voltage: 750 Vac at sea level
- Operating Temperature: -40°C to +125°C
- Sealing: IP64
- Rotational Life: 50,000 cycles
- Operating Torque: 0.2 to 4.5 oz.-in
- Terminal Type: Solder lug
- Environmental Resistance: RoHS compliant
Buy the VISHAY Series Spectrol Conductive Cermet Potentiometers: 14910A0BHSX10103KA
Purchase the Vishay Spectrol conductive plastic and cermet potentiometer online today. Designed for durability, high rotational life, and precise resistance adjustment, this product supports up to 50,000 cycles and is RoHS compliant. Its wide resistance range from 100 ohms to 2 megaohms, combined with a 270° + 10° effective rotation and IP64 sealing, makes it ideal for industrial automation, control systems, and precision engineering applications. Order now to ensure reliable component performance in demanding environments.
Get Vishay Spectrol 14910A0BHSX10103KA today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10103KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10103KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10103KA?
You can download the 14910A0BHSX10103KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10103KA?
Vishay
