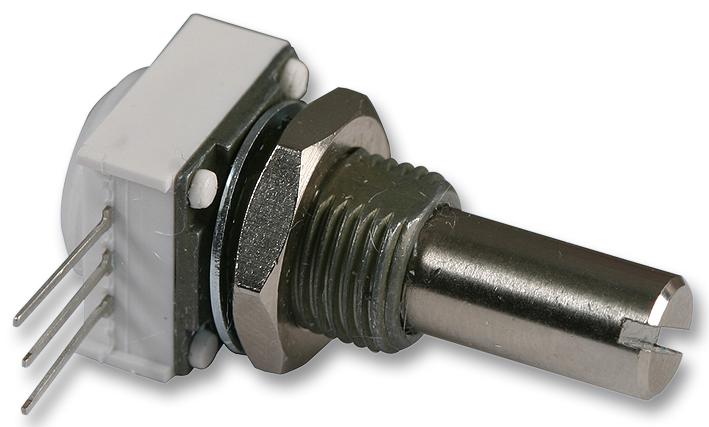

Vishay 14910F0GJSX10252KA Rotary Control Potentiometer
The Vishay Spectrol conductive plastic and cermet potentiometers are precision rotary devices designed for industrial control applications. They feature high rotational life of 50,000 cycles, RoHS compliance, and multiple mounting options including dual and triple sections with solder lug terminals. The 148 and 149 models offer resistance ranges from 1kΩ to 2MΩ with tolerance up to 10%, and linearity within ±5%. These potentiometers operate reliably across temperatures from -40°C to +125°C, providing stable electrical performance with low contact resistance and effective rotational angles suitable for precise adjustment tasks.
Vishay 14910F0GJSX10252KA Rotary Control Potentiometer Specifications:
- Resistance Range: 1kΩ to 2MΩ with tolerance up to 10%
- Resistance Types: Linear and Non-Linear available
- Power Rating: 0.5W at 70°C, 1W at 70°C (Non-Linear models rated derated by 50%)
- Effective Rotation: 270° ±10° without switch, 240° ±10° with switch
- Mechanical Travel: 300° ±5°
- Contact Resistance Variation: 1.5% to 3% of total resistance
- Maximum Working Voltage: 350 VAC across end terminals
- Dielectric Withstanding Voltage: 750 VAC at sea level
- Operating Temperature Range: -40°C to +125°C
- Sealing: IP64
- Mechanical Torque: 0.2 to 3.0 oz-in (single), 0.3 to 4.5 oz-in (dual/triple)
- Weight: up to 0.35 oz
- Terminals: Gold plated switch elements, solder lugs or PC mount options
- Environmental Tolerance: Temperature cycling, load life, rotational life up to 50,000 cycles
Buy the VISHAY 14910F0GJSX10252KA – Reliable Rotary Potentiometer for Industrial Applications
Order the Vishay 14910F0GJSX10252KA rotary control potentiometer today through our online store. This precision device offers robust construction, high rotational life, and stable electrical performance, making it ideal for industrial control and automation. With multiple mounting options and resistance ranges up to 2MΩ, it ensures reliable operation across temperature extremes from -40°C to +125°C. Enhance your equipment’s reliability by purchasing this high-quality potentiometer online now and ensure your project benefits from Vishay’s renowned quality and durability.
Buy Vishay 14910F0GJSX10252KA now and experience unmatched reliability and performance in control systems and industrial applications.
Frequently Asked Questions
Where can I buy Vishay 14910F0GJSX10252KA?
You can click on the BUY or RFQ button to purchase 14910F0GJSX10252KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910F0GJSX10252KA?
You can download the 14910F0GJSX10252KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910F0GJSX10252KA?
Vishay
