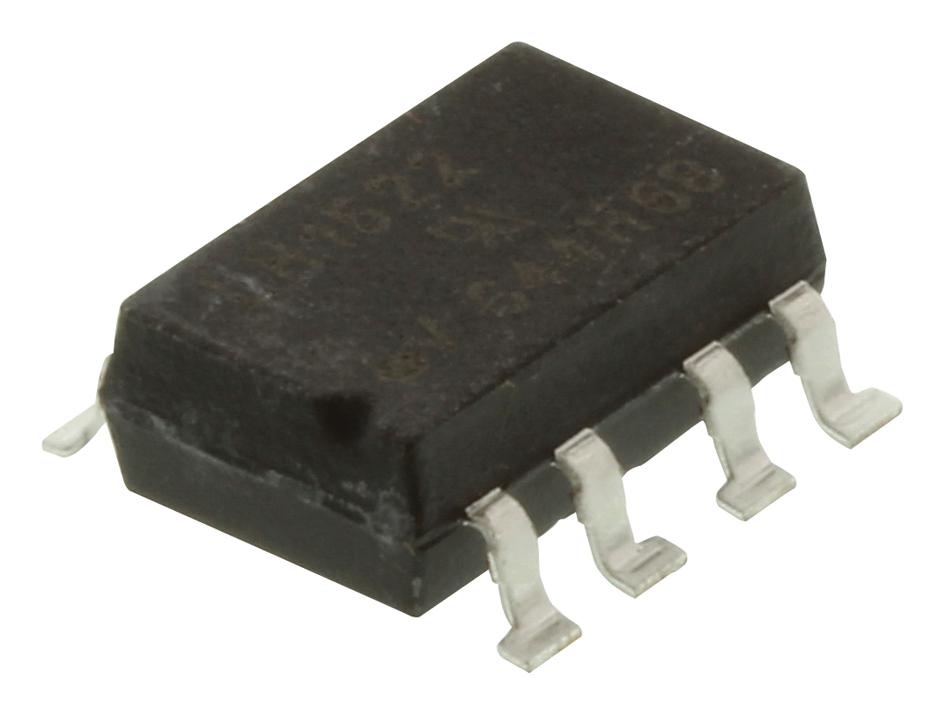

Vishay LH1522AACTR Dual Solid-State Relay
The LH1522 dual 1 Form A solid-state relay is designed for replace electromechanical relays in industrial controls, telecom, security, and instrumentation. It features a GaAlAs LED for actuation, MOSFET switches, and current-limiting circuitry with overvoltage protection. With a load voltage of 200 V, load current of 200 mA, and a wide temperature range from -40°C to +85°C, it offers isolation test voltage of 5300 Vams and low power consumption. Suitable for automatic test equipment and safety applications, it meets UL1577 standards and RoHS compliance, ensuring reliable, bounce-free switching with high isolation performance.
Vishay LH1522AACTR Dual Solid-State Relay Specifications:
- Isolation test voltage: 5300 Vams
- Load voltage: 200 V
- Load current: 200 mA / 140 mA
- Input forward current: 50 mA
- Input reverse voltage: 5 V
- Input power dissipation: 80 mW
- SSR output power dissipation: 550 mW
- Ambient temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +150°C
- Soldering temperature: 260°C max for 10s
- Maximum rated withstanding isolation voltage: 5300 V
- Repetitive peak isolation voltage: 890 Vpeak
- Insulation resistance: 2101 Ω at 500 V
- Output capacitance: 6 pF
- On-resistance: 12.2 Ω (typical at 50 mA)
- Switching times: turn-on ~0.20 ms, turn-off ~0.04 ms
- Protection circuitry: Current limiting, overvoltage protection
