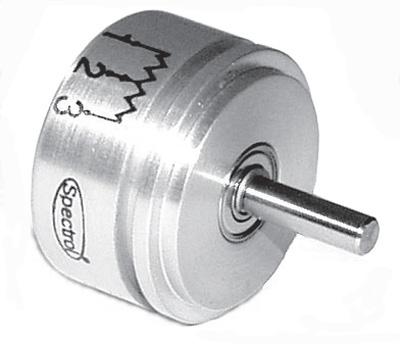

Vishay 15711502 Precision Industrial Potentiometer
The Vishay Spectrol 157 series precision industrial potentiometers are designed for demanding applications requiring high accuracy and reliability. These potentiometers feature a rugged, one-piece metal housing, ensuring long rotational life and durability. They offer excellent linearity, with options for special linearity requirements, and a wide operating temperature range, making them suitable for use in harsh environments. Available in both bushing and servo mount configurations, the 157 series provides versatility for various mounting requirements. They are commonly used in industrial control systems, automation equipment, and other applications where precise position feedback is critical.
Vishay 15711502 Precision Industrial Potentiometer Specifications:
- Sensor Type: ROTATIONAL, conductive plastic
- Output Type: Output by turrets
- Market Appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Resistance: 1 kΩ to 100 kΩ
- Resistance Tolerance: ± 20 % / ± 10 %
- Linearity: ± 2.0 % / ± 0.25 %
- Temperature Coefficient of Resistance: ± 600 ppm/°C
- Power Rating: 1.0 W at 40 °C ambient / 0 W at 125 °C
- Electrical Angle: 340° ± 4°
- End Voltage: 0.5 % maximum
- Dielectric Withstanding: 1000 VRMS, 60 Hz
- Insulation Resistance: 100 MΩ minimum, 500 VDC
- Output Smoothness: 0.1 %
- Weight: 0.5 oz. maximum (14g)
- Rotation: 360° (continuous)
- Mount Bearing Type (Bushing): Sleeve bearing
- Mount Bearing Type (Servo): Ball bearing
- Operating Torque Starting: 0.30 oz. - in (21.6 g - cm)
- Operating Torque Running: 0.25 oz. - in (18 g - cm)
- Mechanical Tolerance (in/mm) Shaft Runout (TIR): 0.002" (0.05 mm)
- Mechanical Tolerance (in/mm) Pilot Dia Runout (TIR): 0.005" (0.13 mm)
- Mechanical Tolerance (in/mm) Lateral Runout (TIR): 0.006" (0.15 mm)
- Mechanical Tolerance (in/mm) Shaft End Play: 0.003" (0.08 mm)
- Mechanical Tolerance (in/mm) Shaft Radial Play: 0.002" (0.05 mm)
- Housing/Bushing Material: Aluminum, anodized
- Rear Lid Material: Ceramic
- Shaft Material: Stainless steel
- Terminal Material: Solderable
- Bushing Mount Hardware: Lockwasher, internal tooth steel, nickel plated
- Panel Nut Material: Brass, nickel plated
- Temperature Range: -55 °C to +125 °C
- Rotational Life (Bushing): 5 million shaft revolutions
- Rotational Life (Servo): 10 million shaft revolutions
- Moisture Resistance: Yes
- Vibration Resistance: 15 g 10 to 2000 Hz
- Shock Resistance: 50 g
