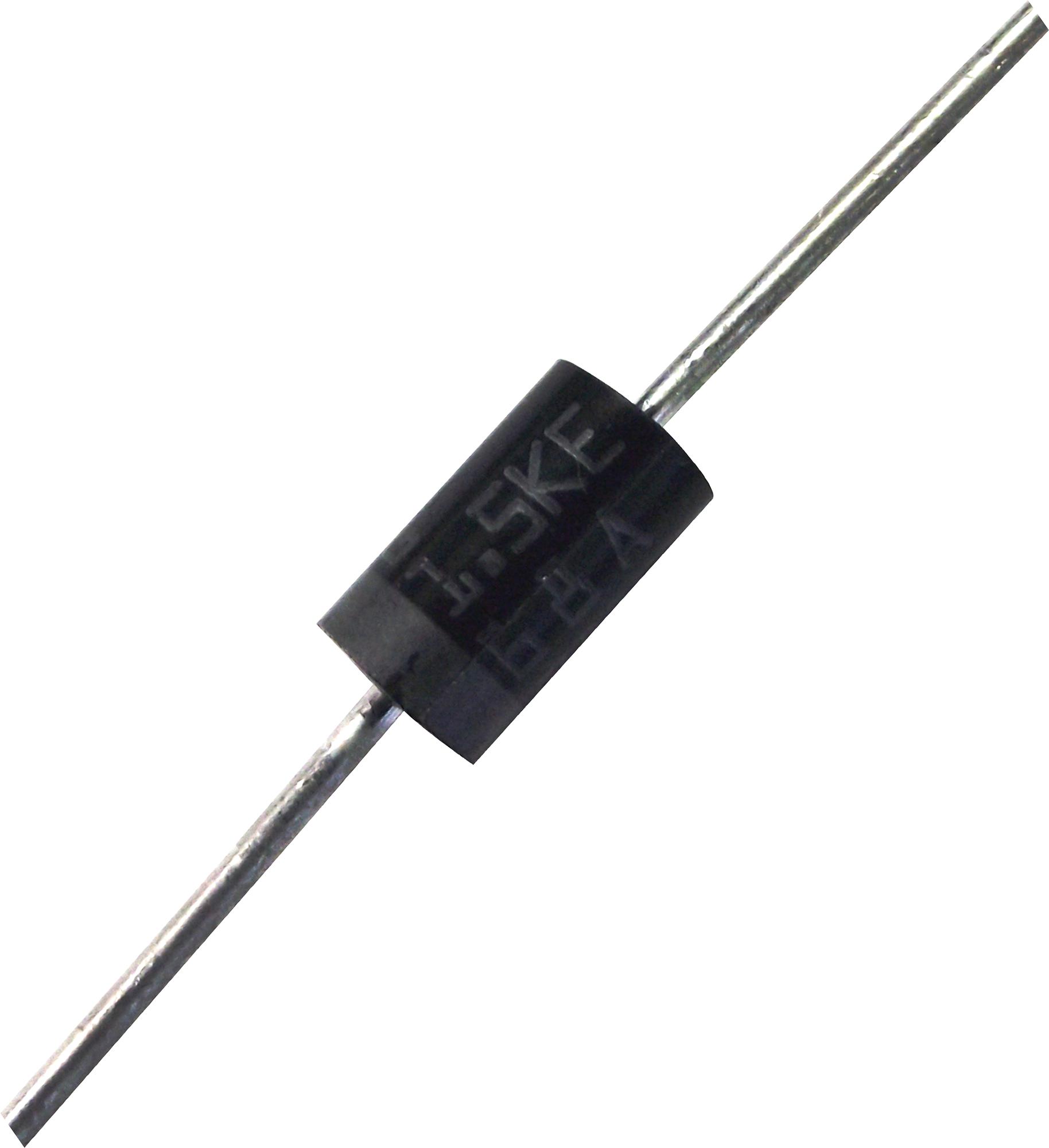

Vishay 15KE47CAE354 Transient Voltage Suppressor Diode
Vishay Transient Voltage Suppressor diode series offers high peak pulse power of 1500 W with ultra-fast response time, ideal for protecting sensitive electronics against voltage transients from lightning, switching surges, and inductive load switching. Available in uni-directional and bi-directional configurations, these packages meet ROHS and AEC-Q101 standards, ensuring reliability in automotive, industrial, and telecommunication applications. The epoxy body case style provides excellent mechanical stability, while the glass passivated chip junction ensures consistent performance under harsh transient conditions. Suitable for use in ICs, MOSFETs, sensors, and other voltage-sensitive components.
Vishay 15KE47CAE354 Transient Voltage Suppressor Diode Specifications:
- Peak pulse power: 1500 W (10/1000 µs waveform)
- Maximum clamping voltage varies with model, e.g., 6.8 V to 540 V for uni-directional types
- Peak pulse current up to 200 A (uni-directional only)
- Response time: Effectively instantaneous (1 x 10^-9 seconds)
- Maximum repeated peak pulse power dissipation: 65 W at Tj=75°C
- Operating junction temperature range: -5°C to +175°C
- Case style: Molded epoxy package, meets UL 94 V-0 flammability rating
- Terminals: Matte tin plated leads, solderable per J-STD-002
- Typical thermal resistance junction-to-ambient: 75°C/W
- Part of RoHS and AEC-Q101 compliant series, suitable for automotive and industrial protection
- Designed for transient suppression in sensitive electronic circuits, lightning, and induced voltage surges
- Available in preferred packages with weights around 0.968g, packaged in tape and reel for automation
- Waveform: 8/20 µs impulse response, suitable for high-voltage transient protection procedures
- Mounting: Solderable leads compatible with standard assembly processes
- Mechanical dimensions: Length approx. 0.975 inches (24.75 mm), diameter 0.210 inches (5.33 mm)
Buy the Buy Vishay Transzorb Part Number 15KE47CAE354 Online
Order the Vishay Transzorb 15KE47CAE354 now to enhance the protection of your sensitive electronics against high-voltage transients. With a peak pulse power of 1500 W, fast response times, and reliable performance, this diode is suitable for lightning strikes, inductive switching surges, and voltage spikes in automotive, industrial, and telecommunication systems. Its rugged epoxy package and RoHS, AEC-Q101 compliance ensure durability and safety. Purchase online today for excellent transient suppression and peace of mind in your circuit designs.
Get Vishay 15KE47CAE354 today—built for precision and long-lasting durability in transient voltage suppression.
Frequently Asked Questions
Where can I buy Vishay 15KE47CAE354?
You can click on the BUY or RFQ button to purchase 15KE47CAE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 15KE47CAE354?
You can download the 15KE47CAE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of 15KE47CAE354?
Vishay
