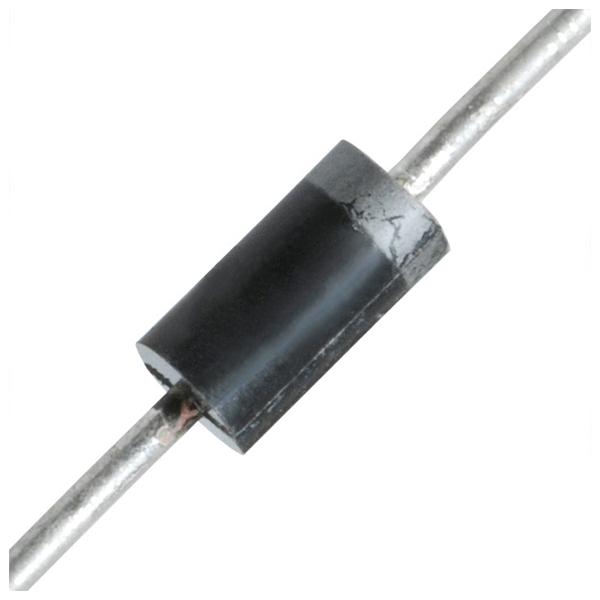

Vishay 1N4744ATAP Zener Diode
The Vishay 1N4744A-TAP is a silicon planar power Zener diode specifically engineered for stabilizing and clipping circuits requiring high power ratings. Its AEC-Q101 qualification ensures suitability for demanding automotive applications. The device offers a standard Zener voltage tolerance of ±5%, providing predictable and reliable performance. It is packaged in a DO-41 configuration and is available in taped and ammopack options for automated assembly processes. This Zener diode is a robust and reliable solution for voltage regulation and overvoltage protection in various industrial and consumer electronics applications.
Vishay 1N4744ATAP Zener Diode Specifications:
- VZrange nom.: 3.3 to 100 V
- Test current IZT: 2.5 to 76 mA
- VZspecification: Thermal equilibrium
- Int. construction: Single
- Power dissipation: 1300 mW (at 4 mm from case)
- Zener current: IZ
- Thermal resistance junction to ambient air: 110 K/W (at 4 mm from case)
- Junction temperature: 175 °C
- Storage temperature range: -65 to +175 °C
- Forward voltage (max.): 1.2 V (at 200 mA)
- Zener voltage range: 3.3 to 100 V
- Reverse leakage current: ≤ 5 μA
- Dynamic resistance f = 1 kHz: ≤ 10
- Surge current: 400 to 3000 mA
- Regulator current: 276 to 1380 mA
- Package: DO-41
- Weight: 310 mg
- Molding compound flammability rating: UL 94 V-0
- Moisture sensitivity level: MSL level 1 (J-STD-020)
- Soldering conditions: 260 °C / 10 s at terminals
Buy the 1N4744A-TAP VISHAY Zener Diode | myMectronic
Purchase the Vishay 1N4744A-TAP Zener Diode securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 1N4744ATAP?
You can click on the BUY or RFQ button to purchase 1N4744ATAP from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 1N4744ATAP?
You can download the 1N4744ATAP datasheet or visit the Vishay website for support.
Who is the manufacturer of 1N4744ATAP?
Vishay
