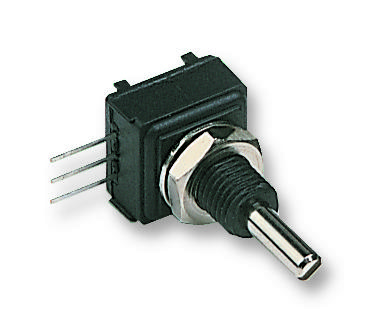

Vishay 248BBHS0XB25252MA Linear Potentiometer
The Vishay Spectrol 248 and 249 are high-quality linear-taper potentiometers featuring conductive plastic and cermet elements, respectively. Designed for panel and PCB mounting, they provide reliable resistance range from 500Ω to 1MΩ with RoHS compliance. Suitable for precision control in various electronic and industrial applications, these potentiometers have IP50 sealing, operating temperature from -55°C to +125°C, and a lifespan of 10,000 cycles. Their robust construction ensures stability, low contact resistance variation, and high insulation resistance, making them ideal for demanding environments.
Vishay 248BBHS0XB25252MA Linear Potentiometer Specifications:
- Element type: Conductive plastic (Model 248), Cermet (Model 249)
- Resistance range: 500Ω to 1MΩ
- Resistance tolerance: ±20% (on request ±10%)
- Power rating: 0.5 W at 70°C (Model 248), 1 W at 70°C (Model 249)
- Temperature range: -55°C to +125°C
- Mechanical travel: 295° + 5°
- End resistance: 2Ω maximum
- Insulation resistance: ≥1000 MΩ
- Dielectric strength: ≥750 V at 50/60 Hz
- Operating torque: 0.1 to 2 N·m
- Sealing: IP50
- Climatic category: 55/125/4
- Weight: Approx. 0.29 oz (8.2 g)
- Max. tightening torque: 150 N·cm
- Available with slotted or metal shaft, various bushings
- Linear and logarithmic taper options available
Buy the Vishay 248 U+2013 Reliable Potentiometer for Industrial Applications
Purchase your Vishay Spectrol 248 potentiometer online now to enjoy reliable performance with broad resistance options, stable electrical characteristics, and long lifespan. Perfect for industrial control and electronic projects, this high-quality component offers IP50 sealing, wide temperature range, and precise adjustment. With easy PCB or panel mounting, the Vishay 248 ensures dependable operation in demanding conditions. Order today and enhance your project with a proven, durable potentiometer designed for accuracy and longevity in various industrial and electronic applications.
Order your Vishay Spectrol 248 potentiometer today and ensure precise control with durable, high-performance components suitable for demanding environments.
Frequently Asked Questions
Where can I buy Vishay 248BBHS0XB25252MA?
You can click on the BUY or RFQ button to purchase 248BBHS0XB25252MA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 248BBHS0XB25252MA?
You can download the 248BBHS0XB25252MA datasheet or visit the Vishay website for support.
Who is the manufacturer of 248BBHS0XB25252MA?
Vishay
