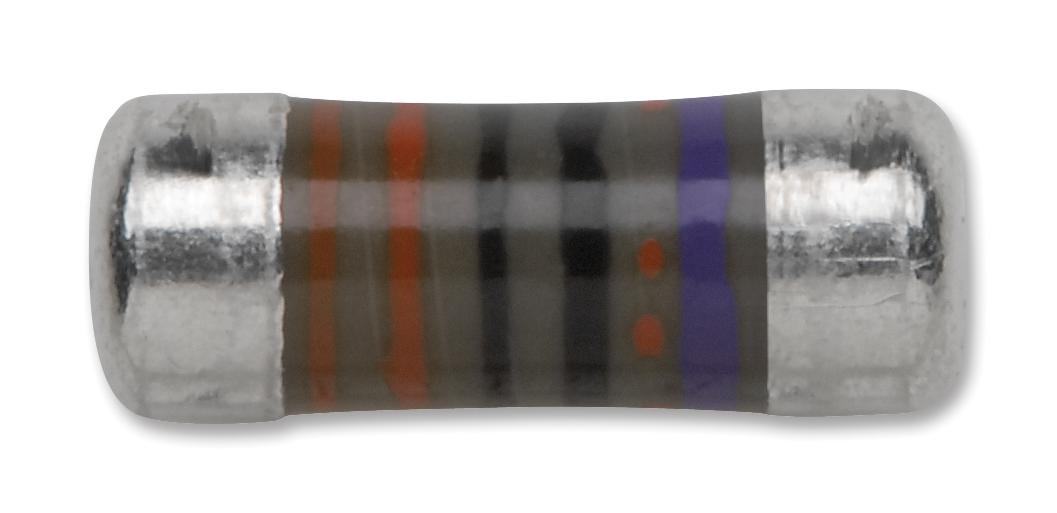

Vishay MMB0207MC2704FB200 High Voltage MELF Resistor
Vishay Beyschlag's professional high voltage thin film MELF resistors, MMA 0204 HV and MMB 0207 HV, are designed for modern electronics where reliability and stability are critical. These resistors feature high operating voltages up to 1000 V, advanced metal film technology, and RoHS compliance. Suitable for lighting, medical, and industrial applications, they endure harsh conditions with temperature coefficients of +50 ppm/K, resistance ranges from 340 kΩ to 10 MΩ, and a rated dissipation of up to 1.0 W. Precise manufacturing and extensive testing ensure exceptional performance and longevity.
Vishay MMB0207MC2704FB200 High Voltage MELF Resistor Specifications:
- Resistance range: 340 kΩ to 10 MΩ
- Resistance tolerance: ±1%
- Temperature coefficient: +50 ppm/K
- Operating voltage: Up to 1000 V AC/DC
- Rated dissipation: 0.4 W (MMA 0204 HV), 1.0 W (MMB 0207 HV)
- Temperature range: -55°C to 155°C
- Permissible voltage against ambient: 500 V (Umax), 75 V continuous
- DIN sizes: 0204 and 0207
- Ceramic body: Al2O3
- Lead terminations: Nickel-plated steel, Sn on Ni plating
- Dimensions: MMA 0204 HV — 3.6 x 1.4 x 1.8 mm; MMB 0207 HV — 5.8 x 2.2 x 3.2 mm
- Compliance: RoHS, Halogen-free
- Application: Lighting, industrial, medical electronics
- Manufactured with laser trimming and extensive testing
- Maximum film temperature: 125°C (MMA 0204 HV), 155°C (MMB 0207 HV)
Buy the Vishay MMA 0204 HV – Reliable High Voltage MELF Resistors for Industrial Applications
Order the Vishay MMA 0204 HV high voltage MELF resistor online today for reliable performance in demanding industrial and medical electronics. Designed for applications requiring precise resistance values, high operating voltage up to 1000 V, and RoHS compliance, these resistors are manufactured with advanced metal film technology and laser trimming for exceptional accuracy and stability. They support automatic surface-mount assembly and withstand harsh environmental conditions, offering a long service life of up to 8000 hours at maximum film temperature. Ensure your electronic systems' reliability by purchasing these high quality, RoHS-compliant resistors online now.
Get Vishay MMA 0204 HV today—built for precision and long-lasting durability in high voltage environments.
Frequently Asked Questions
Where can I buy Vishay MMB0207MC2704FB200?
You can click on the BUY or RFQ button to purchase MMB0207MC2704FB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MMB0207MC2704FB200?
You can download the MMB0207MC2704FB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of MMB0207MC2704FB200?
Vishay
