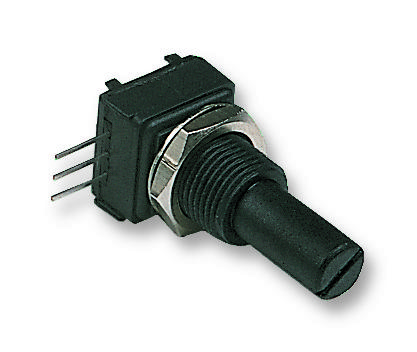

Vishay 248FGJSPXB25501MA Industrial Potentiometer
The Vishay Spectrol 248 and 249 series are precision linear and logarithmic conductive plastic and cermet potentiometers designed for panel and PCB mounting. These low-cost, RoHS-compliant devices feature resistance ranges from 500Ω to 1MΩ, with power ratings of 0.5 W and 1 W at 70°C respectively. They offer reliable electrical performance, including a total resistance range, resistance tolerance, and environmental durability with an IP50 sealing level. Suitable for control applications requiring accurate, durable, and adjustable resistance components in industrial electronics.
Vishay 248FGJSPXB25501MA Industrial Potentiometer Specifications:
- Element type: Conductive plastic (Model 248) and Cermet (Model 249)
- Resistance range: 500Ω to 1MΩ
- Resistance tolerance: ±20% (on request ±10%)
- Power rating: 0.5 W at 70°C (Model 248), 1 W at 70°C (Model 249)
- Electrical travel: 295° ± 5°
- Linearity: ±5%
- Temperature coefficient of resistance: + 500 ppm/°C (Model 248), + 150 ppm/°C (Model 249)
- Maximum voltage: 300 V
- Mechanical travel: 295° ± 5°
- Environmental temperature range: -55°C to +125°C
- Sealing level: IP50
- End resistance: Max 2Ω
- Weight: Approx. 0.29 oz (8.2 g)
- Resistance coding: From 501 (500Ω) to 105 (1MΩ)
- Packaging: B25 box of 25 pieces
- Tolerances: M=20%, K=10% (249 only), Taper: A=linear, L=logarithmic
Buy the VISHAY 248 U–2013 Reliable Conductive Plastic Potentiometer for Industrial Applications
Secure your Vishay Series248 potentiometer online today for precise resistance adjustment in industrial control systems. These reliable and durable components deliver excellent performance with resistance ranges up to 1MΩ, a low power rating of 0.5 W, and IP50 sealing. Perfect for panel or PCB mounting, they feature linear or logarithmic taper, and operate across a wide temperature range. Enhance your automation and control projects by ordering now and ensure reliable operation with these high-quality, cost-effective potentiometers designed for industrial environments.
Order your Vishay Series248 precision potentiometer today and provide your industrial projects with dependable resistance control solutions.
