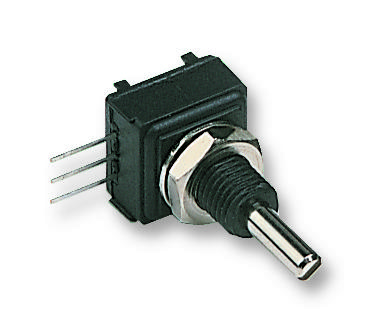

Vishay 249BBHS0XB25501KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249BBHS0XB25501KA is a 1/2" conductive plastic or cermet potentiometer, ideal for applications requiring a cost-effective and compact panel mounting solution. It boasts a wide resistance range, linear or logarithmic tapers, and is designed to meet CECC 41000 or IEC 60393-1 standards. Common applications include industrial equipment, consumer electronics, and automotive systems where precise resistance adjustment is needed. The potentiometer's robust construction and reliable performance ensure long-term durability and consistent operation.
Vishay 249BBHS0XB25501KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element type: Cermet
- Total resistance range: 500 to 1 M
- Resistance tolerance: ± 20 %
- Power rating: 1 W at 70 °C
- Temperature coefficient of resistance: ± 150 ppm/°C
- Limiting element voltage: 300 V
- Insulation resistance: 1000 M minimum, 500 VDC
- Dielectric strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical travel: 295° ± 5°
- Operating torque: 0.1 Ncm to 2 Ncm
- End stop torque: 35 Ncm (50 oz.-inch)
- Max. tightening torque: 150 Ncm
- Weight: 8.3 g
- Temperature range: -55 °C to +125 °C
- Climatic category: 55 / 125 / 4
- Sealing: IP 50
