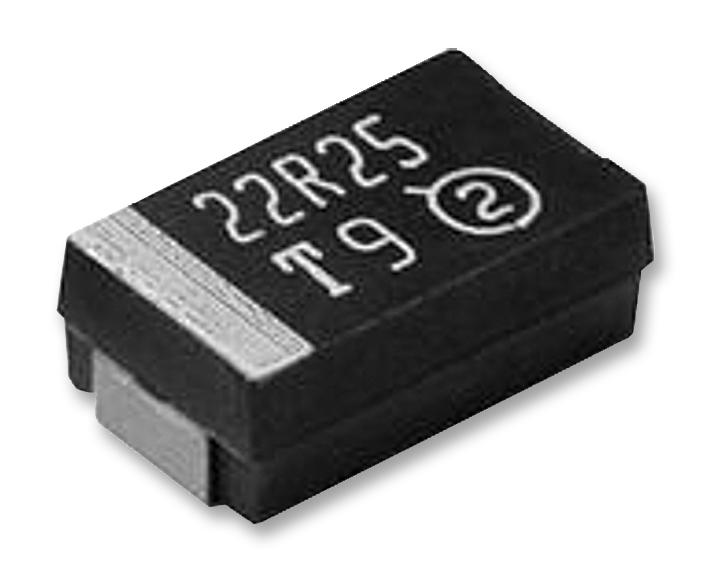

Vishay 293D685X9016A2TE3 Surface Mount Tantalum Capacitor
Solid tantalum surface mount chip capacitors are known for their high reliability, stable electrical parameters, and compact design, making them ideal for industrial, telecom, and general electronics applications. They feature molded cases with RoHS-compliant matte tin terminations, operate from -55 °C to +125 °C (with derating), and offer capacitance values from 0.10 µF to 1000 µF. Their construction includes manganese dioxide electrolyte, tantalum pentoxide dielectric, and optional built-in fuses for automotive and high-temperature use. These capacitors are tested for surge current, moisture sensitivity, and are compatible with automatic pick-and-place systems, ensuring best-in-class performance and durability in demanding environments.
Vishay 293D685X9016A2TE3 Surface Mount Tantalum Capacitor Specifications:
- Operating Temperature: -55 °C to +125 °C (voltage derating above 85 °C)
- Capacitance Range: 0.10 µF to 1000 µF
- Capacitance Tolerance: +5 %, +10 %, +20 %
- Voltage Rating: 4 V to 75 V
- Case Codes: A, B, C, D, E, V
- Terminations: 100 % matte tin, tin/lead options available, RoHS compliant
- Leakage Current: 0.01 CV or 0.5 μA, whichever is greater
- Dissipation Factor: Tested at +25 °C, 120 Hz; limits vary by series
- ESR: Measured at 100 kHz, limits specified in datasheet
- Maximum Ripple Current: Based on derating factors with respect to temperature
- Mechanical: Encapsulated in molded plastic, suited for surface mount assembly
- Shock & Vibration: Meets MIL-STD-202, no mechanical damage after testing
- Reflow Soldering: Compatible with standard profiles, maximum ramp rate 3 °C/s
- Compliance: RoHS, MIL-PRF-55365/8, EIA-535-BAAC
- Packaging: Reel packaging available in 7
Buy the Vishay Series 293D High-Reliability Tantalum Capacitor: 293D685X9016A2TE3
Order the Vishay 293D685X9016A2TE3 high-reliability surface mount tantalum capacitor online today and ensure your electronic designs benefit from top-tier stability, durability, and efficiency. Designed for industrial, telecom, and automotive applications, this capacitor offers excellent moisture resistance, temperature stability up to +125 °C, and RoHS compliance. Its molded case with matte tin termination guarantees compatibility with automatic assembly lines. Secure your supply chain and upgrade your electronics with this high-performance part—available for quick direct purchase and global shipping.
Buy Vishay 293D685X9016A2TE3 now and experience unmatched reliability and performance in demanding electronic environments.
Frequently Asked Questions
Where can I buy Vishay 293D685X9016A2TE3?
You can click on the BUY or RFQ button to purchase 293D685X9016A2TE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 293D685X9016A2TE3?
You can download the 293D685X9016A2TE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of 293D685X9016A2TE3?
Vishay
