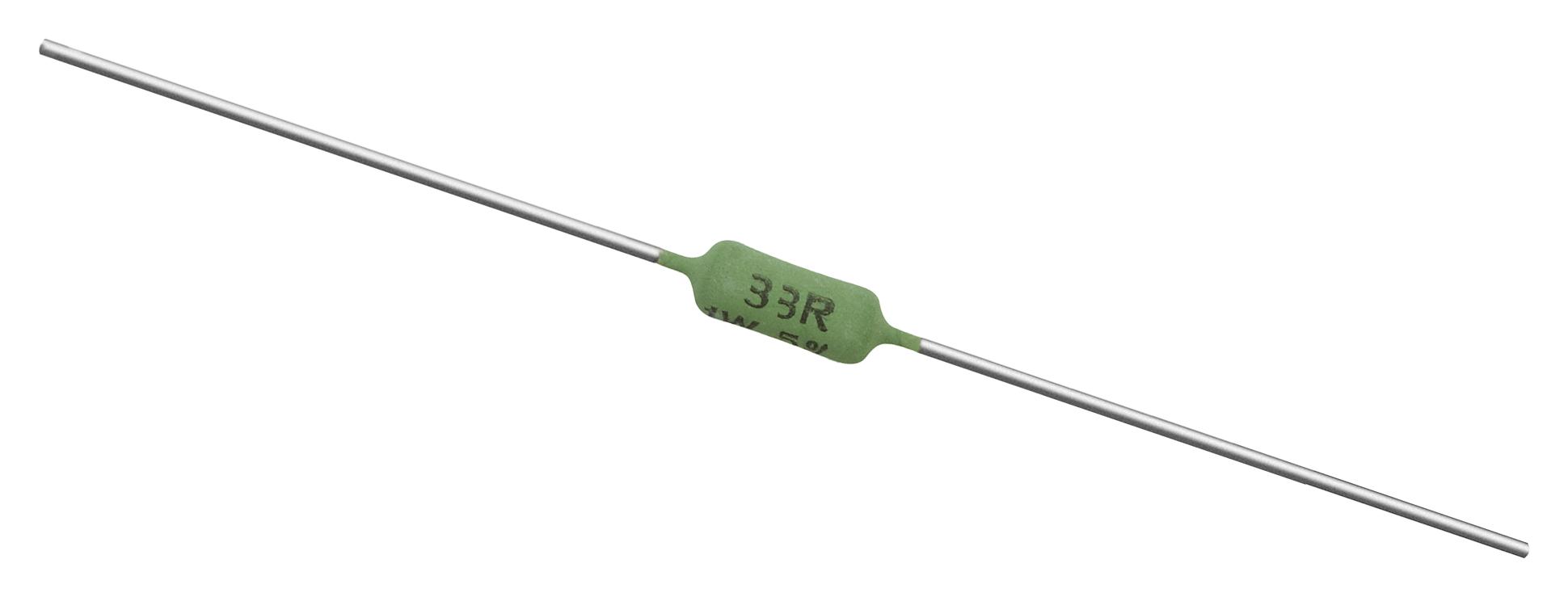

Vishay AC05AT0004709JAC00 High Power Wirewound Resistor
Wirewound resistors are ideal for high power, high current applications, featuring a silicon cement lacquer coating for environmental resistance and durability. Manufactured on fine ceramic bodies (Al2O3) that provide excellent mechanical resistance, thermal shock tolerance, dielectric strength, and insulation at high temperatures. They meet strict standards for environmental compliance, including RoHS and WEEE directives, and are suitable for automotive, industrial, and energy meter applications. The resistors are axial leaded, with optional special lead forms available on request, and are thoroughly tested to ensure reliability and performance under challenging conditions.
Vishay AC05AT0004709JAC00 High Power Wirewound Resistor Specifications:
- Resistance range: 0.10Ω to 27kΩ
- Rated power: 1W to 10W
- Temperature range: -55°C to 250°C
- Material: Ceramic (Al2O3), silicon cement lacquer coating
- Resistance tolerance: ±5%
- Lead form options: Radial taped, WSZ, DK, EK, DKLP, EK, etc.
- Lead material: FeCu
- Dimensions vary by model, e.g., AC04 16.5 mm length, 5.5 mm max diameter
- Compliance: RoHS, WEEE, IEC 60068-2-xx, IEC 60115-1
- Environmental resistance: Damp heat, thermal shocks, dry heat, and climatic cycling
- Maximum peak pulse power: varies with pulse duration and resistor type
- Pulse energy capability: up to 10 Ws depending on model
- Operating temperature: -55°C to 250°C
- Approvals: AEC-Q200 qualified for automotive use
Buy the Vishay Series High Power Resistor AC05AT0004709JAC00
Discover the reliability and high performance of Vishay wirewound resistors suitable for demanding industrial and automotive applications. Featuring ceramic construction and environmentally resistant coatings, these resistors are designed for high power, high current environments. With broad resistance ranges, strict quality testing, and compliance with RoHS and WEEE standards, they deliver durability under thermal shocks, damp heat, and other challenging conditions. Order online today for fast delivery and ensure your electronic assemblies meet the highest standards of quality and reliability.
Order your Vishay AC05AT0004709JAC00 high power resistor today and ensure your electronic projects feature the durability and performance they deserve.
Frequently Asked Questions
Where can I buy Vishay AC05AT0004709JAC00?
You can click on the BUY or RFQ button to purchase AC05AT0004709JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AC05AT0004709JAC00?
You can download the AC05AT0004709JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of AC05AT0004709JAC00?
Vishay
