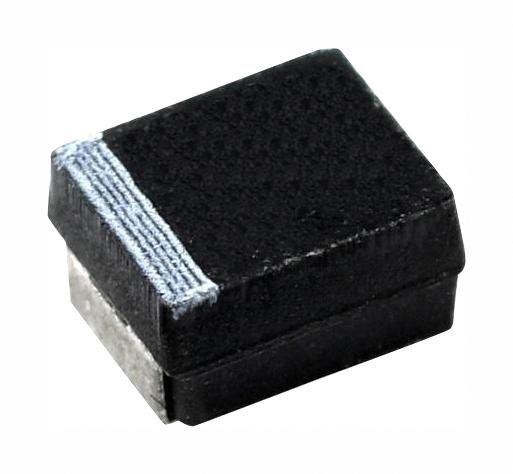

Vishay 293D685X9020A2TE3 Solid Tantalum Capacitor
Solid tantalum surface mount chip capacitors designed for reliable industrial, telecom, and general-purpose electronic applications. These molded case, high-performance capacitors feature low ESR, high stability, and temperature ranges from -55°C to +125°C with voltage ratings up to 75V. They are RoHS-compliant with matte tin terminations, suitable for automatic pick-and-place manufacturing, and meet industry standards including EIA and MIL. These durable capacitors offer exceptional electrical performance, long service life, and are ideal for space-constrained and high-reliability electronic systems.
Vishay 293D685X9020A2TE3 Solid Tantalum Capacitor Specifications:
- Temperature Range: -55°C to +125°C (with voltage derating above 85°C)
- Capacitance Range: 0.1 pF to 220 μF depending on series
- Voltage Rating: 4V to 75V, various series include 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V, 63V, 75V
- Capacitance Tolerance: ±20%, ±10%, ±5%
- Leakage Current: 0.25 pA or 0.01 CV at +25°C, whichever is greater
- Dissipation Factor: 4% to 30% depending on series
- Case Codes: A, B, C, D, E with specified dimensions
- Terminations: 100% matte tin, tin/lead options available
- RoHS compliant, Halogen-free, Green materials
- Rated for high-reliability applications, MIL-PRF-55365/8 qualified
- Manufactured with high precision to meet industry standards and tested for surge, thermal, and mechanical stress
Buy the VISHAY Series 293D Solid Tantalum Capacitor: Reliable Surface Mount Part Number 293D685X9020A2TE3
Experience the superior performance of Vishay’s high-reliability molded tantalum capacitors, engineered for industrial, automotive, and military use. These surface-mount components provide low ESR, excellent stability, and a wide temperature range from -55°C to +125°C. With voltage ratings up to 75V and comprehensive industry certifications, they ensure long-lasting durability in critical applications. Perfect for high-density circuit boards, their RoHS-compliant design includes matte tin terminations, making them ideal for automatic pick-and-place assembly. Purchase Vishay 293D online today for dependable performance and quick delivery.
Get Vishay 293D today—built for high stability, low ESR, and reliable performance in demanding industrial and telecom environments.
Frequently Asked Questions
Where can I buy Vishay 293D685X9020A2TE3?
You can click on the BUY or RFQ button to purchase 293D685X9020A2TE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 293D685X9020A2TE3?
You can download the 293D685X9020A2TE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of 293D685X9020A2TE3?
Vishay
