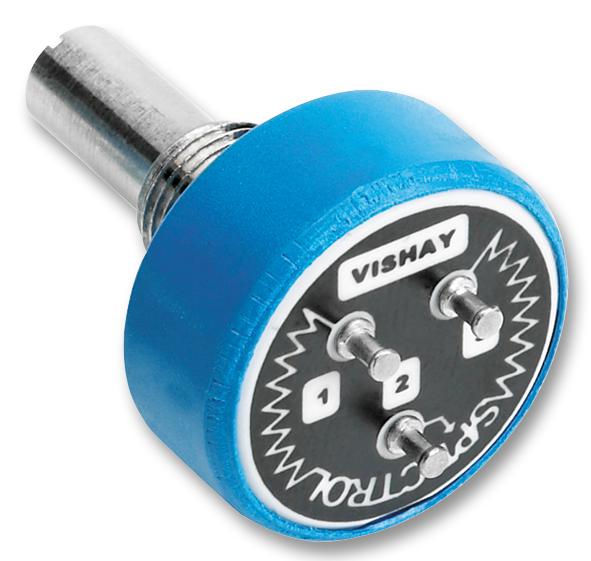

Vishay 357B0102MAB251S22 Conductive Plastic Potentiometer
The Vishay Spectrol Model 357 series is a compact, conductive plastic potentiometer with a bushing mount suitable for industrial applications. It features a 7/g" diameter, single turn design with resistance options from 1KΩ to 50KΩ, tolerances of +20%/+10%, and a linearity maximum of 0.1%. Capable of continuous 360° rotation, it offers a maximum operating torque of 3.68 mNm, great durability with vibration and shock resistance, and temperature tolerance from -55°C to +125°C. Constructed with thermoplastic housing, nickel-plated brass bushing, stainless steel shaft, and turret terminals, it’s ideal for precise, reliable control.
Vishay 357B0102MAB251S22 Conductive Plastic Potentiometer Specifications:
- Diameter: 7/g" (22.2 mm)
- Resistance range: 1KΩ to 50KΩ
- Resistance tolerance: +20%/+10%
- Linearity: 0.1% maximum
- Output type: Output by turrets
- Electrical travel: 340° ±3°
- Maximum operating torque: 3.68 mNm
- Vibration resistance: 15 g, 10 Hz to 2000 Hz
- Shock resistance: 50 g
- Temperature range: -55°C to +125°C
- Housing: Thermoplastic
- Shaft material: Stainless steel
- Mounting: 3/8 - 32 UNEF - 2A
- Terminals: Solder plated turret type
- Dielectric withstand voltage: 1000 V AC, 60 Hz
- Insulation resistance: 1000 MΩ
- Mechanical rotation: 360° continuous with optional stops
- Weight: approx. 17.5 g
Buy the Vishay Series 357 Conductive Plastic Potentiometer: 357B0102MAB251S22
Enhance your control system with the Vishay Series 357 conductive plastic potentiometer, offering precise, durable, and reliable rotary adjustment. Perfect for industrial environments, it features a 7/g" diameter, resistance options from 1KΩ to 50KΩ, and a robust design that withstands vibration, shock, and temperature extremes. Its compact size and quality construction make it ideal for various industrial applications requiring precise and consistent electrical control. Purchase online today to benefit from fast delivery and technical support, ensuring your project maintains high standards of performance and durability.
Order your Vishay Series 357 conductive plastic potentiometer today and ensure reliable, precise control for your industrial applications.
Frequently Asked Questions
Where can I buy Vishay 357B0102MAB251S22?
You can click on the BUY or RFQ button to purchase 357B0102MAB251S22 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 357B0102MAB251S22?
You can download the 357B0102MAB251S22 datasheet or visit the Vishay website for support.
Who is the manufacturer of 357B0102MAB251S22?
Vishay
