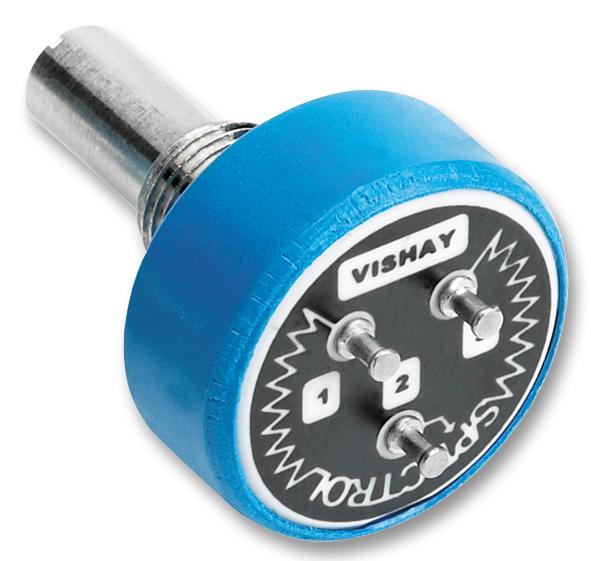

Vishay 357B0103MAB251S22 Conductive Plastic Industrial Potentiometer
The 357B0103MAB251S22 is a 7/8-inch (22.2mm) precision conductive plastic industrial potentiometer designed for various industrial applications. It features a bushing mount, single-turn operation, and screwdriver slot adjustment for ease of installation. The device has a compact thermoplastic housing, a brass nickel-plated bushing, and a stainless steel shaft. It offers resistance values from 1KΩ to 50KΩ with ±20% or ±10% tolerance, a power rating of 1W, and a temperature coefficient of ±600ppm/°C. The terminals are turret type, solder plated, with a Mounting thread of 3/8 - 32 UNEF - 2A. Insulation resistance is 1000MΩ, and it is vibration, shock, and load life resistant, suitable for industrial control systems.
Vishay 357B0103MAB251S22 Conductive Plastic Industrial Potentiometer Specifications:
- Diameter: 7/8 inch (22.2 mm)
- Resistance Range: 1KΩ to 50KΩ
- Tolerance: +20% / +10%
- Power Rating: 1 Watt
- Temperature Coefficient: ±600ppm/°C
- Resistance Linearity: Not specified
- Output Type: Output by turrets
- Electrical Travel: 340° typical
- Dielectric Withstanding Voltage: 1000V AC, 50/60Hz
- Insulation Resistance: 1000MΩ
- Mechanical Rotation: 360° continuous with optional stops at 340°
- Mounting Thread: 3/8 - 32 UNEF - 2A
- Shaft Diameter: 6 mm (metric variation available)
- Housing Material: Thermoplastic
- Bushing Material: Brass, nickel plated
- Shaft Material: Stainless steel
- Terminals: Solder plated turret type
- Vibration Resistance: 15 g, 10 Hz to 2000 Hz
- Shock Resistance: 50 g, 11ms
- Operating Temperature Range: -55°C to +125°C
- Lifecycle: 5 million shaft revolutions
Buy the Vishay Spectrol Series Conductive Plastic Potentiometer: 357B0103MAB251S22
Order the Vishay Spectrol 357B0103MAB251S22 online today to enhance your industrial control solutions. This precision potentiometer features a compact design, robust thermoplastic housing, and sturdy brass bushing. With resistance options from 1KΩ to 50KΩ, it provides reliable performance in demanding environments. Its 1W power rating and high insulation resistance ensure durability and safety. Easy to install with a 3/8 - 32 UNEF mounting thread, this device is perfect for automation, instrumentation, and control applications. Shop now for fast delivery and superior quality.
Buy Vishay Spectrol 357B0103MAB251S22 now and experience unmatched reliability and precision for your industrial control systems.
Frequently Asked Questions
Where can I buy Vishay 357B0103MAB251S22?
You can click on the BUY or RFQ button to purchase 357B0103MAB251S22 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 357B0103MAB251S22?
You can download the 357B0103MAB251S22 datasheet or visit the Vishay website for support.
Who is the manufacturer of 357B0103MAB251S22?
Vishay
