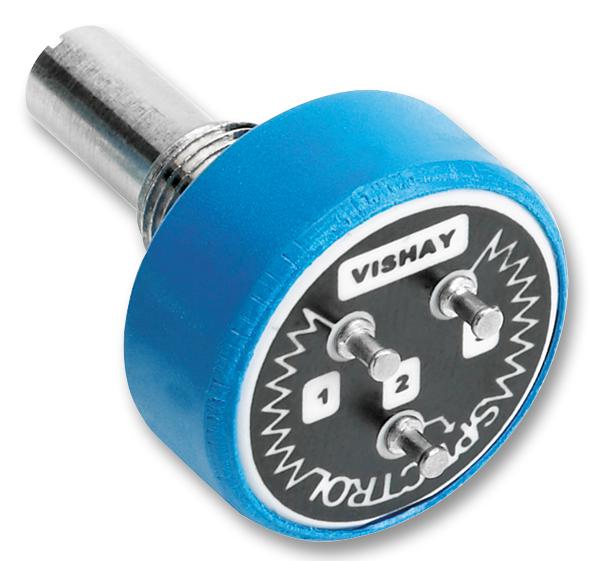

Vishay 357B0202MAB251S22 Conductive Plastic Potentiometer
The Vishay Spectrol Model 357B conductive plastic potentiometer features a compact 7/g inch (22.2 mm) diameter, single-turn design suitable for industrial applications. It offers resistance ranges from 1 KΩ to 50 KΩ with tolerances of +20% and +10%, and a maximum linearity deviation of 0.1%. This potentiometer supports continuous 360° rotation with optional mechanical stops at 340°, and is mounted via a 3/8-32 UNEF-2A thread. It is built with a thermoplastic housing, brass bushing, and stainless steel shaft, providing durable performance with a 1000 V dielectric withstand voltage and 1000 MΩ insulation resistance.
Vishay 357B0202MAB251S22 Conductive Plastic Potentiometer Specifications:
- Diameter: 7/g inch (22.2 mm)
- Resistance Range: 1 KΩ to 50 KΩ with +20% and +10% tolerance
- Linearity: 0.1% maximum
- TCR (Temperature Coefficient of Resistance): 600 ppm/°C maximum
- Power Rating: 7.0 W at 70°C, derated to 0 W at 125°C
- Electrical Travel: 340° with optional stops
- Dielectric Withstanding Voltage: 1000 V ac, 60 Hz
- Insulation Resistance: 1000 MΩ at 500 V dc
- Rotation: 360° continuous, with optional stops at 340°
- Operating Torque: Maximum 3.68 mNm (0.5 oz-in)
- Mechanical Mounting: 3/8-32 UNEF - 2A thread
- Shaft: Stainless steel, 6.0 mm or metric variation
- Housing Material: Thermoplastic
- Bushing Material: Nickel-plated brass
- Terminals: Turret type, solder plated
- Vibration Resistance: 15 g from 10 Hz to 2000 Hz
- Shock Resistance: 50 g
Buy the Vishay Series 357 Conductive Plastic Potentiometer: 357B0202MAB251S22
Order the Vishay 357B0202MAB251S22 conductive plastic potentiometer online today for your industrial control systems. Featuring durable thermoplastic housing, stainless steel shaft, and resistance up to 50KΩ, this precision potentiometer ensures accurate and reliable control with a 360° rotation. Its compact size and high-quality construction make it suitable for demanding industrial environments. Enjoy quick delivery and secure online purchasing options, ensuring you get a top-tier component for your automation needs. Invest in proven performance now.
Buy Vishay 357B0202MAB251S22 now and experience unmatched reliability and precision in industrial control applications.
