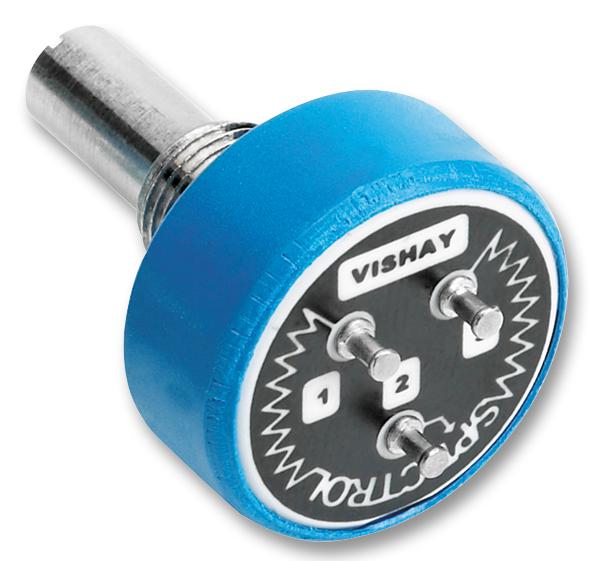

Vishay 357B2202MXB251S22 Conductive Plastic Potentiometer
The Vishay Spectrol Model 357B series conductive plastic potentiometer features a compact 7/g inch (22.2 mm) diameter, ideal for industrial applications. It offers multiple resistance options from 1KΩ to 50KΩ with tolerances of +20% or +10%. Designed for continuous 360° rotation with optional mechanical stops, it supports high durability with a maximum operating torque of 3.68 mNm. The device boasts smooth output, high insulation resistance, and is constructed with thermoplastic housing, brass bushing, and stainless steel shaft, making it suitable for precision control in industrial environments.
Vishay 357B2202MXB251S22 Conductive Plastic Potentiometer Specifications:
- Dimensions: 22.2 mm diameter, shaft diameter 6.0 mm or metric variation
- Resistance Range: 1KΩ to 50KΩ, tolerance +20% or +10%
- Output: By turrets, smoothness 0.1%, linearity ±2%
- Electrical: Max TCR 600 ppm/°C, Power Rating 7.0 W at 70°C (derated at 125°C)
- Rotation: 360° continuous (optional 340° with stops), operating torque max 3.68 mNm
- Mechanical: Mounting thread 3/8-32 UNEF-2A, shaft runout 0.13 mm, end play 0.25 mm
- Housing: Thermoplastic, bushing: Brass nickel-plated, shaft: Stainless steel
- Environmental: Vibration 15 g, shock 50 g, storage -55°C to +125°C, life 5 million revolutions
- Electrical: Insulation resistance 1000 MΩ, dielectric withstand voltage 1000 V AC
Buy the Vishay Series 357 Conductive Plastic Potentiometer: 357B2202MXB251S22
Purchase the Vishay 357B2202MXB251S22 conductive plastic potentiometer online today for accurate, reliable, and durable rotational control. Its compact design and high resistance stability make it perfect for industrial equipment requiring precise adjustment and long service life. With easy installation and robust construction, this potentiometer ensures consistent performance across various environmental conditions. Secure this essential component now and enhance your control systems with Vishay's trusted quality and innovation.
Get Vishay 357B2202MXB251S22 today—built for precision and long-lasting durability in industrial control systems.
