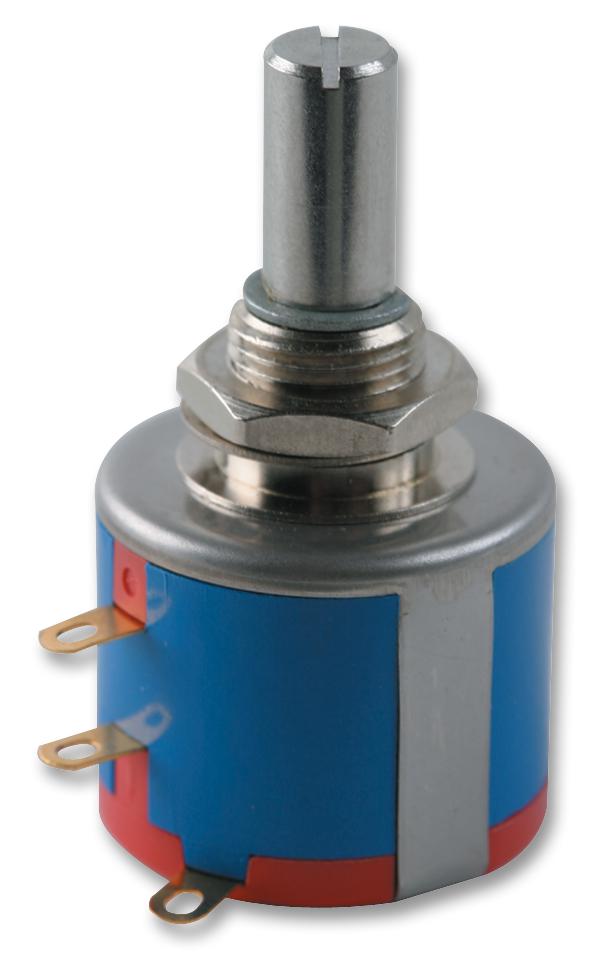

Vishay 533B1103JL Multi-Turn Wirewound Potentiometer
The Vishay Spectrol multi-turn wirewound potentiometers Models 533, 534, and 535 are precision electrical components designed for industrial applications. Featuring resistance ranges from 50Ω to 20kΩ, they offer high linearity of ±0.25% and robust construction with bushing or servo mount options. These potentiometers provide reliable rotational control with durability, high torque, and optional features like center tap and slip clutch. Suitable for various industrial control systems, they guarantee stable performance over extensive vibration, shock, and temperature ranges, ensuring accurate signal adjustment in demanding environments.
Vishay 533B1103JL Multi-Turn Wirewound Potentiometer Specifications:
- Sensor type: Rotational, multi-turn wirewound
- Resistance range: 50Ω to 20kΩ
- Resistance tolerance: ±25%, optional special tolerances to 1%
- Linearity: ±0.25% (standard)
- Rotation: 1080° +10', 3600° +19', 1800° +10'
- Power rating: 1.0W at 70°C (Model 533), 2.0W (Model 534), 1.5W (Model 535)
- Insulation resistance: 1000 MΩ min at 500 Vdc
- Dielectric strength: 1000 Vrms minimum at 60 Hz
- Temperature coefficient: 20 ppm/°C (wire only)
- Vibration: 15g at 2000 Hz
- Shock: 50g
- Rotational life: Up to 1,000,000 cycles for Model 534 (servo), 300,000 for Model 533
- Weight: Up to 1.25 oz (35.44 g)
- Bearing type: Bushing (sleeve bearing) or ball bearing (servo models)
- Environmental: -55°C to +125°C temperature range
Buy the Vishay Series Spectrol Multi-Turn Potentiometer: 533B1103JL
Enhance your industrial control systems with the Vishay Series Spectrol multi-turn potentiometer, offering high linearity, resistance up to 20kΩ, and robust construction. Designed for demanding environments, these precision components feature optional bushing or servo mounts, high torque, and an extended rotational life. Ideal for calibration, signal adjustment, and control applications across manufacturing, automation, and instrumentation. Purchase online now to ensure reliable performance, durable construction, and accurate adjustment in your industrial projects.
Get Vishay Series Spectrol 533B1103JL multi-turn potentiometer today—built for precision and long-lasting durability in industrial controls.
Frequently Asked Questions
Where can I buy Vishay 533B1103JL?
You can click on the BUY or RFQ button to purchase 533B1103JL from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 533B1103JL?
You can download the 533B1103JL datasheet or visit the Vishay website for support.
Who is the manufacturer of 533B1103JL?
Vishay
