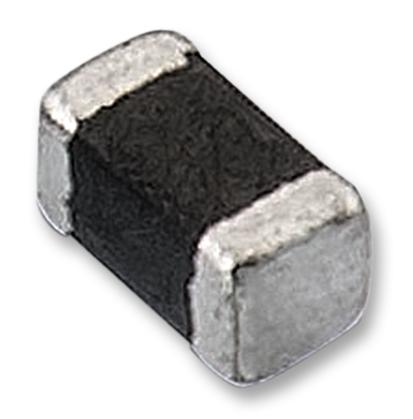

Vishay ILBB0603ER601V Ferrite Bead
The ILBB-0603 ferrite bead is a surface-mount, high-reliability electromagnetic interference (EMI) filter designed for compact electronic circuits. It features magnetically self-shielded construction, RoHS compliance, and nickel barrier plating to prevent silver migration. Rated for operating temperatures from -55°C to +125°C, it offers low DCR, high current handling, and stability across a broad frequency range, making it ideal for filtering and noise suppression in various electronic components and power supply applications. Its small 0603 size ensures ease of placement in dense circuit layouts.
Vishay ILBB0603ER601V Ferrite Bead Specifications:
- Size: 0603 (1.6 mm x 0.8 mm)
- Operating Temperature: -55°C to +125°C
- DCR: 0.045 + 0.004 ohms at 100 MHz
- Rated Current: 150 mA to 500 mA depending on model
- Impedance Value: from 30 to 150 ohms
- Impedance Tolerance: ±25% at 100 MHz
- Solderability: 90% coverage after 5 s dip in 235°C solder
- Maximum Resistance to Solder Heat: 10 s at 260°C
- Thermal Shock Resistance: 100 cycles between -40°C and +125°C
- Mechanical Strength: Terminal and beam strength minimum 0.3 kg (0.66 lbs)
- RoHS Compliant, Nickel Barrier Plating
- Package: Tape and Reel with 4,000 pcs on a 7-inch reel
Buy the Vishay ILBB0603 U+2013 Reliable Ferrite Bead for Industrial Applications
Enhance your electronic designs with the Vishay ILBB0603 ferrite bead, a compact and reliable EMI filter. Designed for surface mounting, it offers excellent noise suppression, stability across a wide temperature range, and RoHS compliance for eco-friendly assemblies. Its small footprint makes it suitable for dense circuit boards, ensuring minimal electromagnetic interference in power supplies and communication equipment. With high thermal and mechanical resilience, this ferrite bead is perfect for industrial applications, ensuring long-term performance and consistent noise filtering in your electronic systems.
Get Vishay ILBB0603 today—built for EMI noise filtering and durable electronic performance.
Frequently Asked Questions
Where can I buy Vishay ILBB0603ER601V?
You can click on the BUY or RFQ button to purchase ILBB0603ER601V from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part ILBB0603ER601V?
You can download the ILBB0603ER601V datasheet or visit the Vishay website for support.
Who is the manufacturer of ILBB0603ER601V?
Vishay
