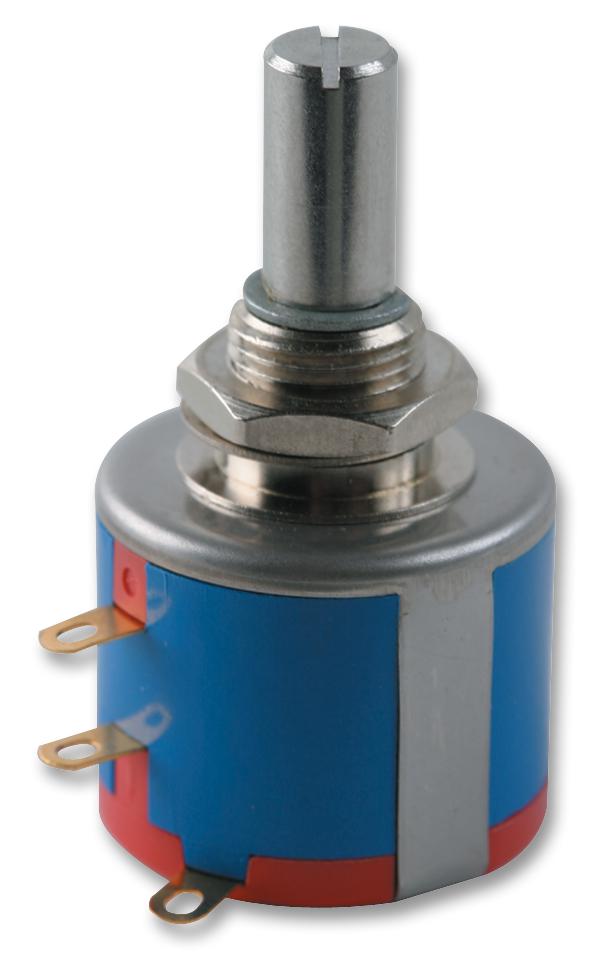

Vishay 533B1502JL Multi-turn Wirewound Potentiometer
The Vishay Spectrol multi-turn wirewound potentiometer series 533, 534, and 535 offers high-precision rotational control with resistance ranges from 50 ohms to 100 kilo-ohms. Designed for industrial applications, it features bushing and servo mount options, excellent linearity (+0.25%), high torque capabilities, and dependable mechanical and electrical performance. Suitable for precision control in instrumentation, automation, and control systems, these potentiometers provide reliable resistance tuning, minimal noise, and durable construction, ensuring long-lasting, accurate operation in demanding environments.
Vishay 533B1502JL Multi-turn Wirewound Potentiometer Specifications:
- Resistance range: 50.0 to 20kΩ, 100Ω to 100kΩ, 50kΩ to 50kΩ depending on model
- Resistance tolerance: ±25%, with options for ±1%
- Linearity: ±0.25%, down to as low as 0.05% on request
- Rotation: 1080°+10', 3600°+19', 1800°+10' mechanical and electrical
- Power rating: 1.0W at 70°C (model 533), 2.0W (model 534), 1.5W (model 535)
- Environmental specs: vibration 15g, shock 50g, temperature range -55°C to +125°C
- Mechanical features include bushing or servo bearings, optional shaft types, and multi-gang configurations
- Maximum torque: Starting 0.7-0.9 oz-in depending on model, Running 0.4-0.9 oz-in
- Weight: up to 1.25 oz, ganging limited to 2 sections maximum
- Electrical: insulation resistance minimum 1000 MΩ, dielectric strength 1000 Vrms, temperature coefficient 20 ppm/°C
Buy the Vishay Series 534 Resistance Control: 534-11103
Purchase the Vishay 534-11103 multi-turn wirewound potentiometer online today to ensure high-precision resistance control for your industrial and automation needs. Designed with robust construction, excellent linearity, and versatile mounting options, this potentiometer guarantees reliable performance in demanding environments. Whether for instrumentation, control systems, or automation setups, buying online offers quick delivery and competitive pricing. Invest in a durable, precise component that enhances your system's stability, with seamless online ordering and expert support to meet your technical requirements.
Get Vishay 534-11103 today—built for precision and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy Vishay 533B1502JL?
You can click on the BUY or RFQ button to purchase 533B1502JL from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 533B1502JL?
You can download the 533B1502JL datasheet or visit the Vishay website for support.
Who is the manufacturer of 533B1502JL?
Vishay
