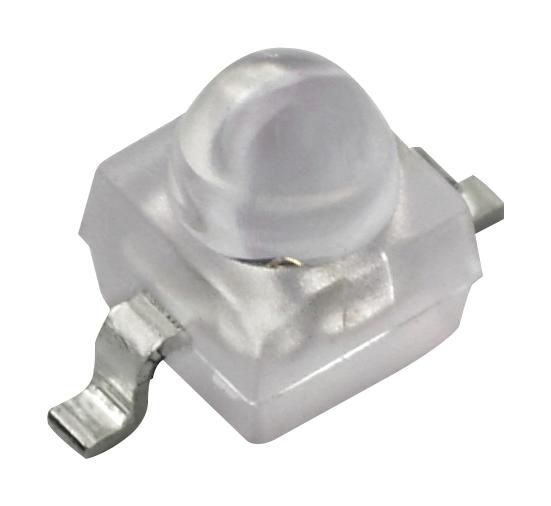

Vishay VLDB1232G08 Surface-Mount LED
The dome lens surface-mount LED series features small, clear, and untinted packages with lenses, ideal for indoor and outdoor lighting, traffic signals, and indicators. Utilizing recent ultrabright InGaN sapphire chip technology, these LEDs offer high luminous flux and intensity with a wide viewing angle of ±9°. Suitable for reflow soldering, they are RoHS compliant, halogen-free, and designed for safe, reliable operation in various applications including signage, backlighting, and bio sensing. They are available in gullwing and reverse gullwing packages, measuring 2.3 x 2.3 x 2.8 mm, with ratings for temperature, voltage, and current that support durable performance.
Vishay VLDB1232G08 Surface-Mount LED Specifications:
- Package: SMD dome lens, gullwing and reverse gullwing
- Dimensions: 2.3 x 2.3 x 2.8 mm
- Material: InGaN sapphire chip technology
- Luminous Intensity: up to 16,000 mcd (green), 3500 mcd (blue)
- Wavelength: 458-472 nm (blue), 515-541 nm (green)
- Forward Voltage: 2.6 - 3.4 V at 20 mA
- Forward Current: 20 mA (max 30 mA), short-term application Vr 5V
- Angle of Half Intensity: ±9°
- ESD Withstand Voltage: up to 2 kV
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- RoHS and Halogen-free compliance
- Suitable for reflow soldering per J-STD-020
- Thermal Resistance: 400 KW junction-to-ambient
- Luminous flux: up to 16000 lm (green), 3500 lm (blue)
- Tolerances: ±15% for luminous flux, ±0.1 V for voltage
- Safety standards: IEC 62471 photobiological safety precautions
Buy the Vishay Series Power Dome Lens: VLDB1232G08
Enhance your electronic or lighting design with the Vishay Series VLDB1232G08 surface-mount LED. Featuring high luminous flux, compact gullwing package, and excellent thermal performance, this LED is suitable for traffic signs, interior lighting, and indicator backlighting. Its ultrabright InGaN sapphire chip technology ensures high efficiency and long-term reliability. RoHS compliant and halogen-free, this surface-mount LED supports reflow soldering for easy assembly. Order online now and upgrade your projects with top-quality Vishay LEDs, ensuring bright, safe, and reliable illumination.
Order your Vishay Series VLDB1232G08 high-brightness LED today and enhance your signage and lighting projects with dependable quality.
Frequently Asked Questions
Where can I buy Vishay VLDB1232G08?
You can click on the BUY or RFQ button to purchase VLDB1232G08 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part VLDB1232G08?
You can download the VLDB1232G08 datasheet or visit the Vishay website for support.
Who is the manufacturer of VLDB1232G08?
Vishay
