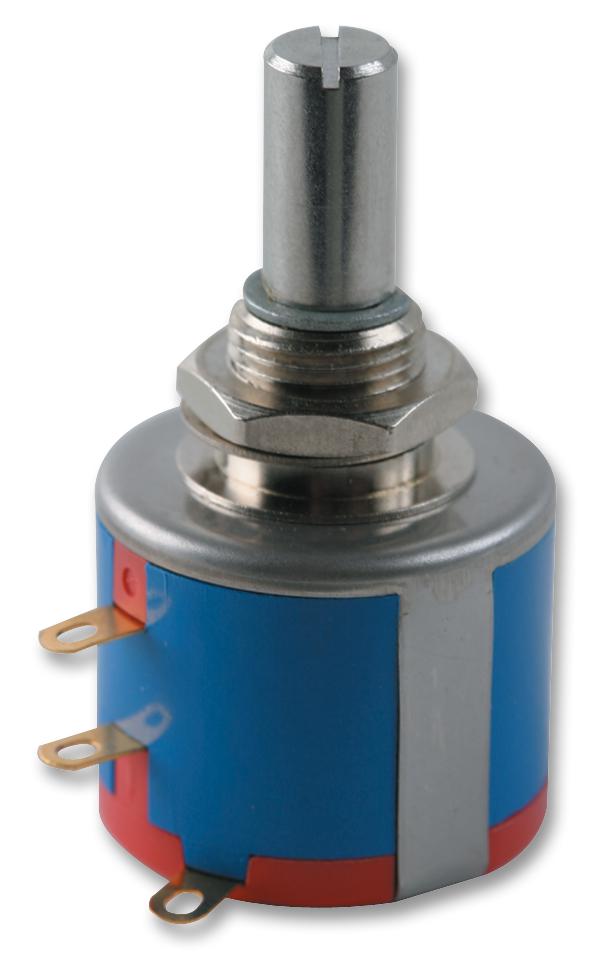

Vishay 534B1103JC Multi Turn Wirewound Potentiometer
The Vishay Spectrol 534B1103JC is a precision multi-turn wirewound potentiometer designed for industrial applications demanding high accuracy and reliability. This potentiometer features a robust construction with bushing and servo mount options, providing versatility in integration. It offers excellent linearity (±0.05% on request) and a wide resistance range (100Ω to 100kΩ), making it suitable for various control and sensing applications. The high torque design ensures precise adjustments, while the available concentric shaft configurations allow for complex multi-axis control systems. Its durable construction and wide operating temperature range (-55°C to +125°C) ensure reliable performance in harsh environments.
Vishay 534B1103JC Multi Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, multi turn wirewound
- Output type: Output by turrets
- Market appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Resistance range - standard values: 100to 100 k
- Capability range: 10to 200 k
- Standard tolerance: ± 5 %
- Linearity (independent): ± 0.25 %
- Noise: 100ENR
- Rotation (electrical and mechanical): 3600°+10° -0°
- Power rating (at 70 °C): 2.0 W
- Insulation resistance: 1000 Mminimum 500 VDC
- Dielectric strength: 1000 VRMSminimum 60 Hz
- Absolute minimum resistance: Not to exceed linearity x total resistance or 1, whichever is greater
- Temperature coefficient: 20 ppm/°C (standard values, wire only)
- End voltage: 0.25 % of total applied voltage, maximum
- Phasing: CCW end points - section 2 phased to section 1 within ± 2°
- Bearing type: Bushing: sleeve bearing, Servo: ball bearing
- Torque (maximums) - Section 1: 0.9 oz.-in (65 g-cm)
- Torque (maximums) - Section 2: 0.7 oz.-in (50.40 g-cm)
- Weight (maximums) - Section 1: 0.75 oz. (21.26 g)
- Weight (maximums) - Section 2: 1.25 oz. (35.44 g)
- Stop strength: 75 oz.-in (5.4 kg-cm)
