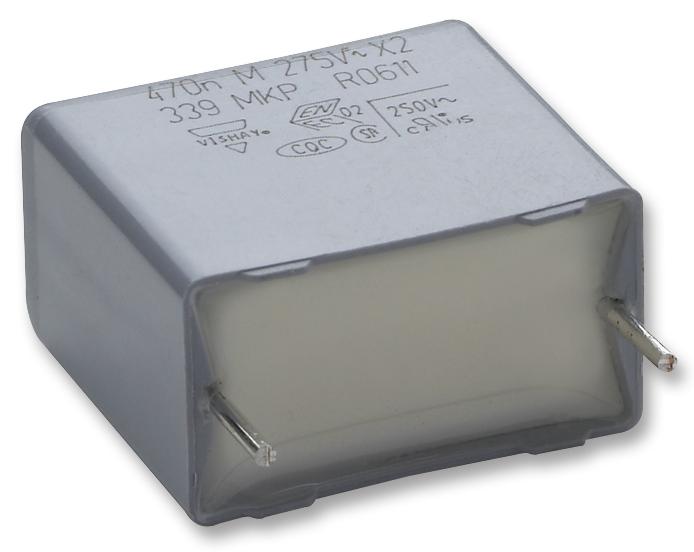

Vishay BFC233910474 Interference Suppression Film Capacitor
The Vishay BCcomponents MKP339 X2 series is a range of interference suppression film capacitors suitable for standard X2 applications. These radial, potted film capacitors are AEC-Q200 qualified, ensuring reliability in automotive and other demanding environments. They are constructed with a polypropylene film dielectric and metallized electrodes, encapsulated in a flame retardant (UL-class 94 V-0) plastic case. Available in various capacitance ranges, voltage ratings, and lead pitches, the MKP339 X2 series offers a versatile solution for noise suppression and filtering in a wide range of industrial and consumer electronics applications. Packaging options include loose in box, taped, ammopack, and reel configurations.
Vishay BFC233910474 Interference Suppression Film Capacitor Specifications:
- Capacitance Range: 0.001μF to 4.7μF
- Capacitance Tolerance: ['± 20 %', '± 10 %', '± 5 %']
- Rated AC Voltage: 310 VAC; 50 Hz to 60 Hz
- Permissible DC Voltage: ['800 VDC at 85 °C', '630 VDC at 110 °C']
- Climatic Testing Class: ['55/110/56/C (≤1750 mm3)', '55/110/56/B (> 1750 mm3)']
- Maximum Application Temperature: ['110 °C (125 °C for <1000 h) for C≤470 nF', '110 °C for C>470 nF']
- Leads: Tinned wire
- Reference Standards: ['IEC 60384-14 ed-4 (2013)', 'EN 60384-14', 'IEC 60065', 'UL 60384-14', 'CSA-E384-14', 'CQC']
- Dielectric: Polypropylene film
- Electrodes: Metallized film
- Construction: Mono construction
- Encapsulation: Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0
- Marking: C-value; tolerance; rated voltage; sub-class; manufacturer’s type designation; code for dielectric material, manufacturer location; manufacturer’s logo or name; year and week; safety approvals
