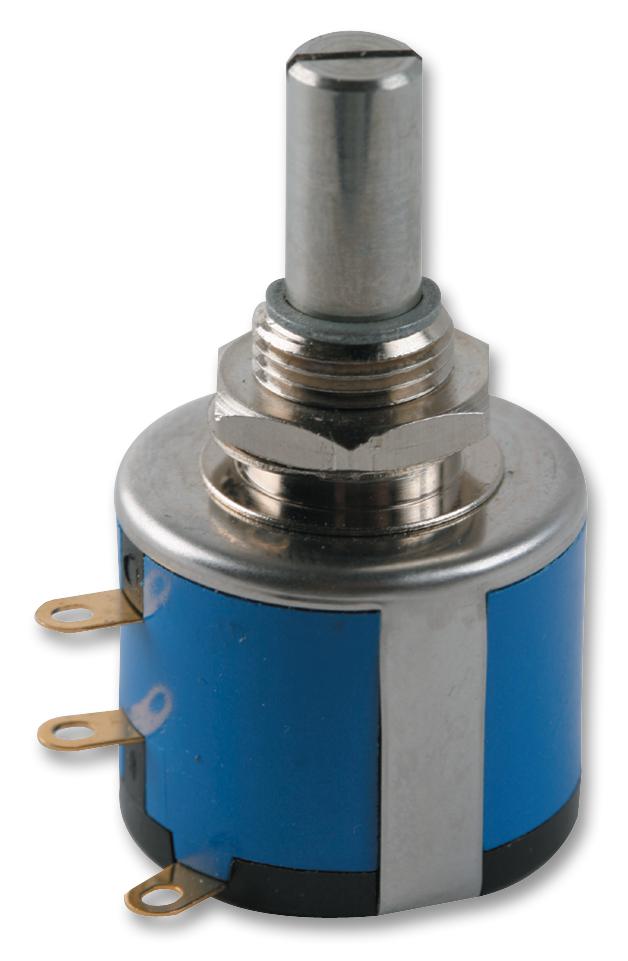

Vishay 534B1103JL Multi Turn Wirewound Potentiometer
The Vishay Spectrol 534B1103JL is a precision multi-turn wirewound potentiometer engineered for demanding industrial applications. This potentiometer provides accurate resistance adjustment with features like high torque, center tap, and slipping clutch options. It's available in various resistance ranges (50Ω to 100kΩ) and configurations, including dual gang and concentric shaft designs, making it suitable for diverse control systems and equipment. The robust construction and precision components ensure reliable performance and long-term durability in harsh environments. It is commonly used in industrial automation, process control, and precision instrumentation where accurate and stable resistance adjustment is critical.
Vishay 534B1103JL Multi Turn Wirewound Potentiometer Specifications:
- Sensor Type: Rotational, multi turn wirewound
- Output Type: Output byturrets
- Market Appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Resistance Range Standard Values: 50Ω to 20 kΩ (Model 533), 100Ω to 100 kΩ (Model 534), 50Ω to 50 kΩ (Model 535)
- Capability Range: 5Ω to 60 kΩ (Model 533), 10Ω to 200 kΩ (Model 534), 5Ω to 100 kΩ (Model 535)
- Standard Tolerance: ± 5 %
- Linearity Independent: ± 0.25 %
- Noise: 100ΩENR
- Rotation Electrical and Mechanical: 1080°+ 10°<br>- 0° (Model 533), 3600°+ 10°<br>- 0° (Model 534), 1800°+ 10°<br>- 0° (Model 535)
- Power Rating at 70 °C: 1.0 W (Model 533), 2.0 W (Model 534), 1.5 W (Model 535)
- Insulation Resistance: 1000 MΩ minimum 500 VDC
- Dielectric Strength: 1000 VRMS minimum 60 Hz
- Absolute Minimum Resistance: Not to exceed linearityx total resistance or 1Ω, whichever is greater
- Temperature Coefficient: 20ppm/°C (standard values, wire only)
- End Voltage: 0.25 % of total applied voltage, maximum
- Phasing: CCW endpoints - section 2 phased to section 1 within ± 2°
- Taps: Center tap only
- Marking Unit Identification: Manufacturer’s name and model number, resistance value and tolerance, linearity specification date code and terminal identification
- Resistance Values 533: 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
- Resistance Values 534: 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
- Resistance Values 535: 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
- Bushing: Sleeve bearing
- Servo: Ball bearing
- Starting Torque Section 1: 0.5 oz. - in (36 g - cm)
- Starting Torque Section 2: 0.9 oz. - in (65 g - cm)
- Running Torque Section 1: 0.4 oz. - in (28.80 g - cm)
- Running Torque Section 2: 0.7 oz. - in (50.40 g - cm)
- Weight Section 1: 0.75 oz. (21.26 g)
- Weight Section 2: 1.25 oz. (35.44 g)
- Stop Strength: 75 oz. - in (5.4 kg - cm)
