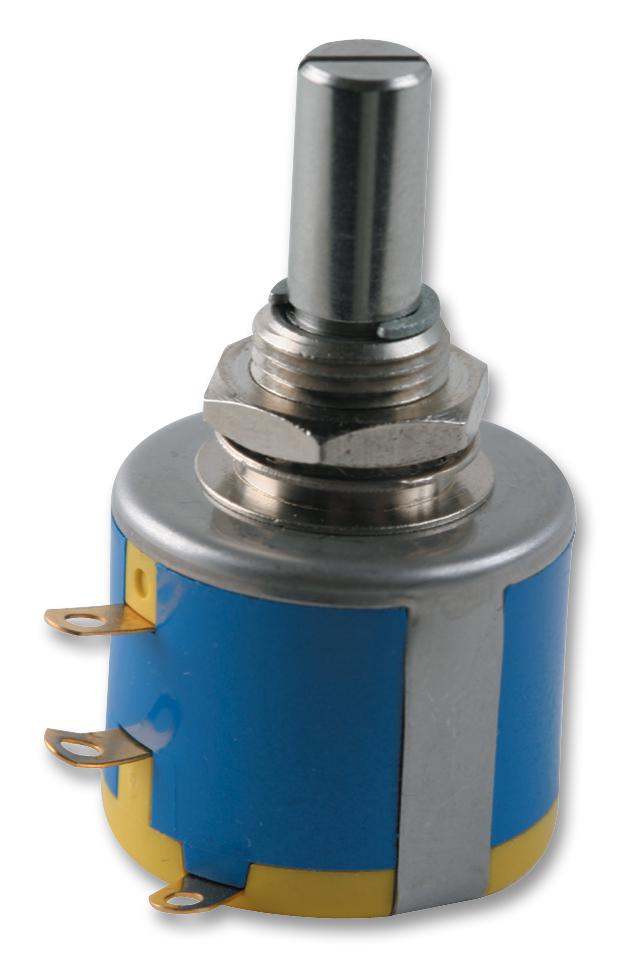

Vishay 534B1104JC8872 Multi Turn Wirewound Potentiometer
The Vishay Spectrol 534B1104JC8872 is a precision multi-turn wirewound potentiometer engineered for demanding industrial applications. Featuring a robust construction and high torque, this potentiometer provides accurate and reliable control in a wide range of systems. Available with various shaft configurations, including bushing and servo mount designs, and a range of resistance values, it caters to diverse application needs. The potentiometer's linearity and low noise characteristics ensure consistent and precise operation, making it suitable for critical control circuits and instrumentation. Its robust design and extended lifespan contribute to long-term reliability and reduced maintenance costs.
Vishay 534B1104JC8872 Multi Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, multi turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Bushing and servo mount designs: available
- Resistance range - standard values (Model 533): 50 to 20 k
- Resistance range - standard values (Model 534): 100 to 100 k
- Resistance range - standard values (Model 535): 50 to 50 k
- Capability range (Model 533): 5 to 60 k
- Capability range (Model 534): 10 to 200 k
- Capability range (Model 535): 5 to 100 k
- Standard tolerance: J= ± 5 %, F= ± 1 %
- Linearity (independent): ± 0.25 %
- Noise: 100ENR
- Rotation (electrical and mechanical) (Model 533): 1080°+10° -0°
- Rotation (electrical and mechanical) (Model 534): 3600°+10° -0°
- Rotation (electrical and mechanical) (Model 535): 1800°+10° -0°
- Power rating (at 70 °C) (Model 533): 1.0 W
- Power rating (at 70 °C) (Model 534): 2.0 W
- Power rating (at 70 °C) (Model 535): 1.5 W
- Insulation resistance: 1000 M minimum 500 VDC
- Dielectric strength: 1000 VRMS minimum 60 Hz
- Absolute minimum resistance: Not to exceed linearityx total resistance or 1, whichever is greater
- Temperature coefficient: 20ppm/°C (standard values, wire only)
- End voltage: 0.25% of total applied voltage, maximum
- Phasing: CCW endpoints - section 2 phased to section 1 within ± 2°
- Taps: Center tap only
- Resistance values (Model 533): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
- Resistance values (Model 534): 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
- Resistance values (Model 535): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
- Linearity: C= ± 0.25 %, D= ± 0.1 %, L= ± 0.2 %, E= ± 0.05 %
