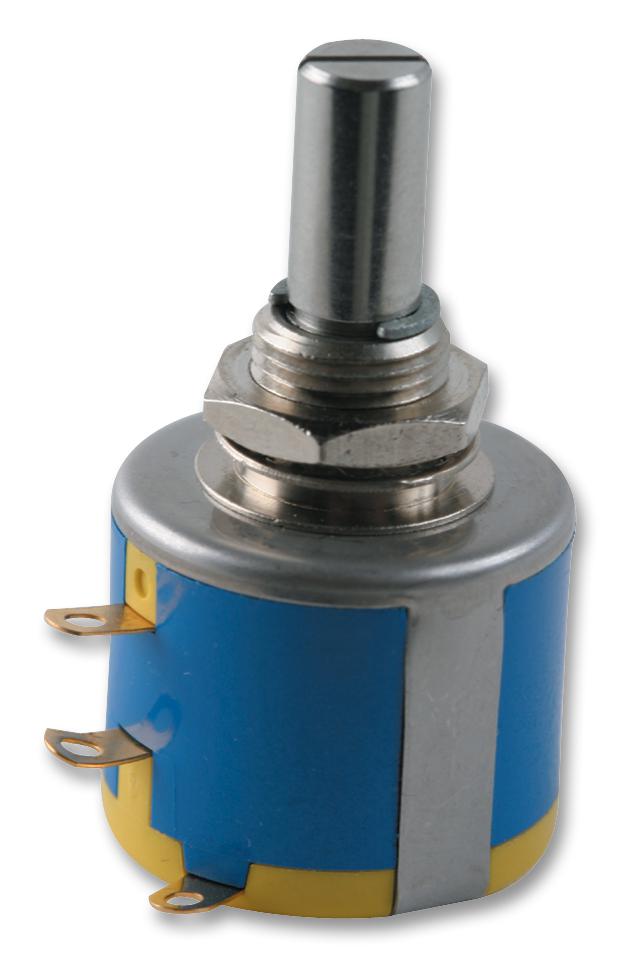

Vishay 534B1201JC8872 Multi Turn Wirewound Potentiometer

Vishay 534B1201JC8872 Multi Turn Wirewound Potentiometer Specifications:

• Sensor type: ROTATIONAL, multi turn wirewound
• Output type: Output byturrets
• Market appliance: Industrial
• Dimensions: 7/8" (22.2 mm)
• Bushing and servo mount designs: available
• Resistance range - standard values (Model 533): 50 to 20 k
• Resistance range - standard values (Model 534): 100 to 100 k
• Resistance range - standard values (Model 535): 50 to 50 k
• Capability range (Model 533): 5 to 60 k
• Capability range (Model 534): 10 to 200 k
• Capability range (Model 535): 5 to 100 k
• Standard tolerance: ± 5%
• Linearity (independent): ± 0.25 %
• Noise: 100ENR
• Rotation (electrical and mechanical) (Model 533): 1080°+10°-0°
• Rotation (electrical and mechanical) (Model 534): 3600°+10°-0°
• Rotation (electrical and mechanical) (Model 535): 1800°+10°-0°
• Power rating (at 70 °C) (Model 533): 1.0 W
• Power rating (at 70 °C) (Model 534): 2.0 W
• Power rating (at 70 °C) (Model 535): 1.5 W
• Insulation resistance: 1000 M minimum 500 VDC
• Dielectric strength: 1000 VRMS minimum 60 Hz
• Absolute minimum resistance: Not to exceed linearityx total resistance or 1, whichever is greater
• Temperature coefficient: 20ppm/°C (standard values, wire only)
• End voltage: 0.25% of total applied voltage, maximum
• Phasing: CCW endpoints - section 2 phased to section 1 within ± 2°
• Taps: Center tap only
• Resistance values (Model 533): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K
• Resistance values (Model 534): 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K
• Resistance values (Model 535): 50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K
• Bushing: Sleeve bearing
• Servo: Ball bearing
• Starting torque (Section 1, Model 533): 0.5 oz. - in (36 g - cm)
• Starting torque (Section 1, Model 535): 0.7 oz. - in (50 g - cm)
• Starting torque (Section 2, Model 533): 0.9 oz. - in (65 g - cm)
• Starting torque (Section 2, Model 535): 1.1 oz. - in (79 g - cm)
• Running torque (Section 1, Model 533): 0.4 oz. - in (28.80 g - cm)
• Running torque (Section 1, Model 535): 0.6 oz. - in (43.20 g - cm)
• Running torque (Section 2, Model 533): 0.7 oz. - in (50.40 g - cm)
• Running torque (Section 2, Model 535): 0.9 oz. - in (64.80 g - cm)
• Weight (Section 1): 0.75 oz. (21.26 g)
• Weight (Section 2): 1.25 oz. (35.44 g)
• Stop strength: 75 oz. - in (5.4 kg - cm)
