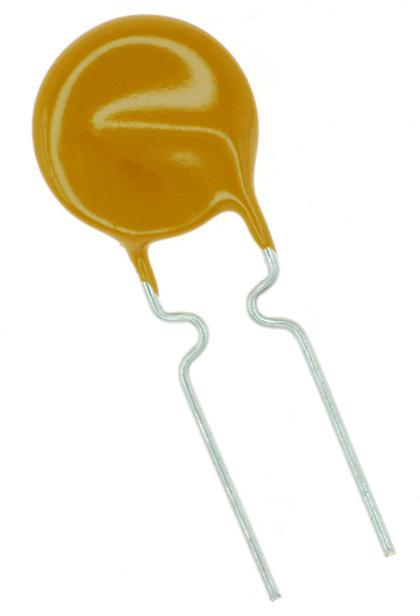

Vishay 562R10TSQ68 Ceramic Disc Capacitor
Temperature and voltage stabilized ceramic disc capacitors with 10% tolerance and rated at 1000 Vdc. Designed for stability and reliability in bypassing, resonant circuits, and coupling applications, these capacitors feature ceramic dielectric materials such as COG, U2J, X7R, and X5F, with high stability and low losses. They have radial leads with various lead spacing options, are flame-retardant epoxy-coated, and support operating temperatures from -55°C to +105°C. Their robust construction ensures stable electrical performance across fluctuating temperature and voltage conditions.
Vishay 562R10TSQ68 Ceramic Disc Capacitor Specifications:
- Capacitance Range: 10 pF to 10 nF
- Rated Voltage: 1000 Vdc
- Dielectric Types: COG, U2J, X7R, X5F
- Capacitance Tolerance: +10%
- Insulation Resistance: ≥ 1000 MΩ at 50 V or ≥ 50,000 MΩ
- Dissipation Factor: Max 2.0% at 1 kHz, 1 V
- Temperature Range: -55°C to +125°C (COG, U2J, X7R), -25°C to +85°C (X5F)
- Operating Temperature Range: -55°C to +105°C
- Mounting: Radial leads with lead spacing options of 0.250" (6.35 mm) or 0.375" (9.5 mm)
- Construction: Ceramic disc, Silver-plated sides, Tinned copper or steel leads
- Coating Material: Flame-retardant epoxy resin (UL 94 V-0)
- Test Voltage (Between Leads): 2500 Vp, 2 seconds
- Certifications: RoHS Compliant, Halogen-Free
- Features: Low losses, High stability, Small size, Complete range of capacitance values
Buy the Buy Vishay Cera-Mite Ceramic Discs Part Number 562R10TSQ68 Online
Purchase Vishay ceramic disc capacitors like the 562R10TSQ68 online and enjoy fast delivery, high-quality components, and proven durability for your electronic projects. These capacitors deliver excellent stability, low losses, and high reliability in bypassing, resonant, and coupling applications. Whether you need a small-capacitance or high-voltage product, our online store offers a complete range of Vishay Cera-Mite capacitors with detailed specifications and competitive prices. Secure your order today for trusted performance in your designs.
Buy Vishay 562R10TSQ68 ceramic disc capacitor now and experience reliable performance and stability in your electronic circuits.
Frequently Asked Questions
Where can I buy Vishay 562R10TSQ68?
You can click on the BUY or RFQ button to purchase 562R10TSQ68 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 562R10TSQ68?
You can download the 562R10TSQ68 datasheet or visit the Vishay website for support.
Who is the manufacturer of 562R10TSQ68?
Vishay
