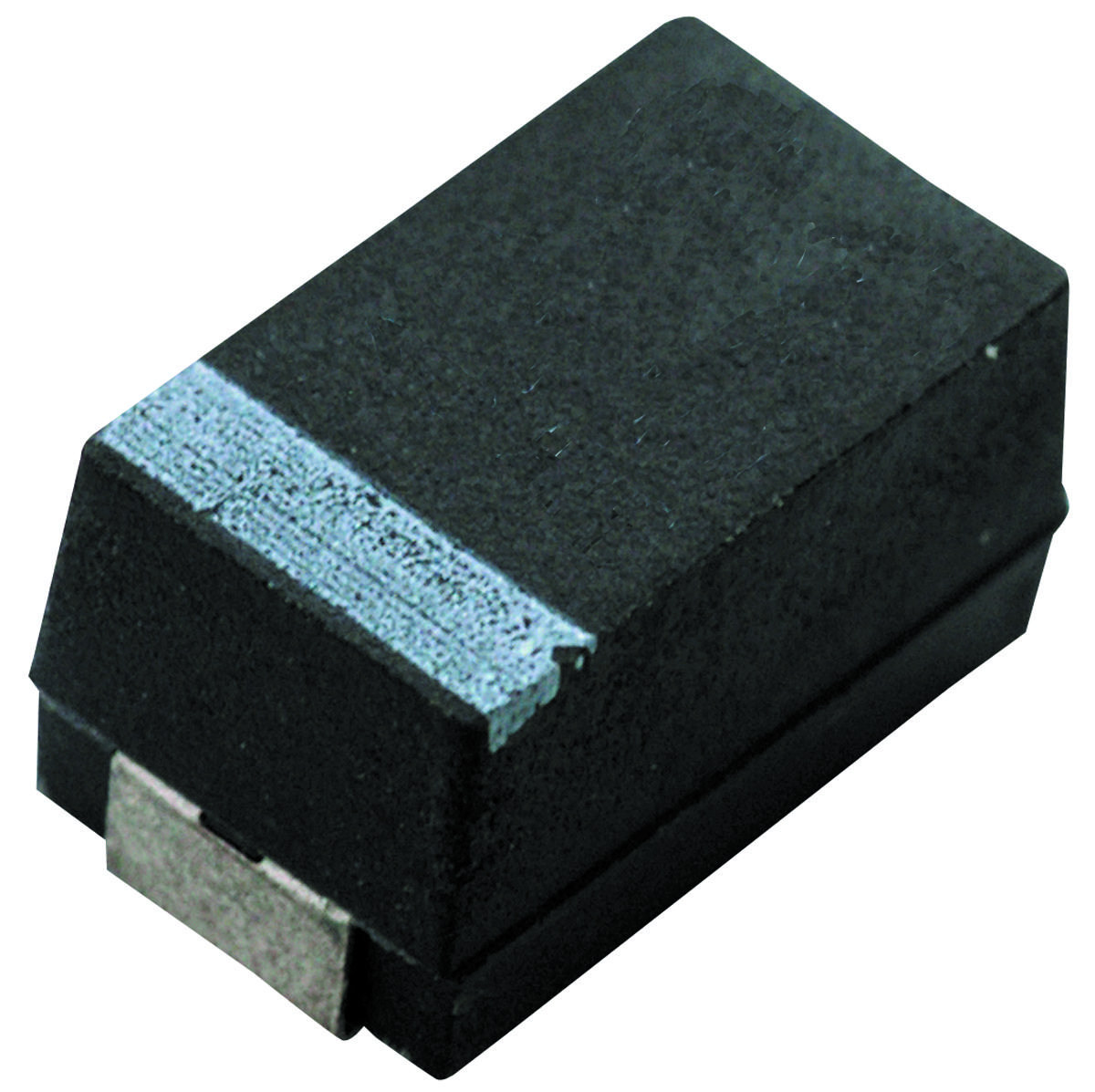

Vishay 593D685X9035D2TE3 Tantalum Capacitor
High-reliability surface mount tantalum capacitor with molded case, low ESR, and stable electrical performance up to +125°C. Suitable for industrial, telecom, and general applications, offering excellent stability, high ripple current capacity, and RoHS compliance. Available with matte tin terminations or lead soldered options, it features a compact design with various capacitance values from 0.47 µF to 470 µF, voltage ratings up to 75V, and tolerance ±20%. Designed for reliable surface-mount assembly, these capacitors meet strict environmental and mechanical standards for long service life.
Vishay 593D685X9035D2TE3 Tantalum Capacitor Specifications:
- Temperature Range: -55°C to +125°C (with voltage derating above +85°C)
- Capacitance Range: 0.47 µF to 470 µF
- Voltage Range: 4V to 75V
- Capacitance Tolerance: ±20%
- Leakage Current: 0.01 CV or 0.5 µA, whichever is greater
- Dissipation Factor: 4% to 30%
- Case Codes: A, B, C, D, E with corresponding dimensions
- Terminations: 100% matte tin standard, optional tin/lead or gold plated
- Power Dissipation: up to 0.165W depending on case code and environmental conditions
- Reflow Profiles: compliant with J-STD-020 for multiple cycles
- Environmental Tests: life at +85°C for 1000 hours, humidity, thermal shock, vibration, and mechanical shock
- RoHS and environmental compliance: Yes, with options for lead-free terminations
Buy the Buy Vishay Tantalum Capacitors Part Number 593D685X9035D Online
Order Vishay tantalum capacitor 593D685X9035D online today and benefit from high reliability, low ESR, and excellent stability across temperature ranges. Suitable for industrial, telecom, and general-purpose electronics, these surface mount capacitors feature various capacitance values up to 470 µF and voltage ratings up to 75V. They are RoHS compliant, with options for matte tin, tin/lead, or gold terminations. Designed for easy surface-mount assembly, these capacitors meet strict environmental standards, ensuring long service life and stable electrical performance for demanding applications.
Get Vishay tantalum capacitor 593D685X9035D today—designed for high reliability, low ESR, and excellent performance in demanding electronics applications.
