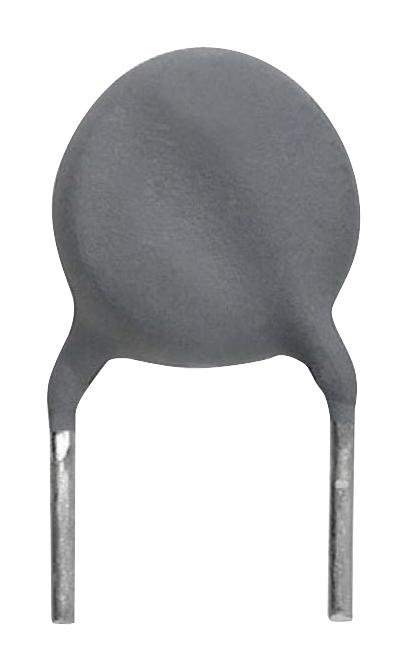

Vishay PTCCL05H100SBE Overload Protection Thermistor
Vishay PTCCL series PTC thermistors provide reliable overload protection for digital multimeters and test instruments. These devices automatically reset after overload conditions, operating on AC or DC voltages with voltage ratings up to 1000 V. Designed for over-temperature and over-current protection, they feature fast response times, making them ideal for metering and signal protection applications. With a resistance range of 400 to 1600 ohms at 25°C and switching temperatures between 90°C to 115°C, they ensure safe, effective instrument safeguarding.
Vishay PTCCL05H100SBE Overload Protection Thermistor Specifications:
- Maximum rated voltage: 600 to 1000 V
- Resistance at 25°C: 400 to 1600 ohms
- Tolerance on Rs: 20% to 30%
- Maximum overload current: 0.5 to 2.0 A
- Switching temperature: 90°C to 115°C
- Operating temperature range: -20°C to 85°C
- Current: 10 mA nominal holding current
- UL approved types available
- Material: High-voltage PTC thermistor
- Dimensions: Max length 12 mm, max diameter 5 mm
- Operates on AC/DC, fast response, automatic reset
- Key features: Over-temperature protection, over-current protection
Buy the Vishay PTCCL – Reliable Overload Protection for Industrial Applications
Secure your digital multimeters and measurement instruments with the Vishay PTCCL series overload protection thermistor. Designed for reliable performance at voltages up to 1000 V, these thermistors feature fast response times and automatic resetting to absorb overload currents and protect sensitive electronics. They operate efficiently across a temperature range of -20°C to 85°C and switch at 90°C to 115°C. Ideal for metering, digital signal protection, and over-temperature applications, order online today to experience dependable, high-quality overload protection for your essential equipment.
Order your Vishay Series PTCCL overload protection thermistor today and ensure your digital instruments are safeguarded with dependable, fast-acting overload protection.
