Vishay AORN4992AT3 Thin Film Resistor Network
The AORN series features a compact, 8-pin narrow body SMT package constructed with a moisture-resistant tantalum nitride resistor film on high purity alumina substrate. Designed for precision voltage divider circuits, engine control units, and signal conditioning, these resistors offer excellent long-term ratio stability, low TCR tracking of ±5 ppm/°C, and pass sulfur resistance tests. With a resistance range from 1 kΩ to 100 kΩ, they operate within -55°C to +155°C, making them ideal for automotive and industrial applications requiring high reliability and moisture protection.
Vishay AORN4992AT3 Thin Film Resistor Network Specifications:
- Material: Tantalum nitride (Ta2N)
- Resistance Range: 1 kΩ to 100 kΩ
- TCR: Absolute 25 ppm/°C, Tracking 5 ppm/°C
- Tolerance: ±0.10% to ±1% at +25°C
- Power Rating: 100 mW at +70°C, 400 mW package max
- Operating Temperature Range: -55°C to +155°C
- Storage Temperature Range: -55°C to +155°C
- Resistance Stability: Absolute AR ±0.05%, Ratio AR ±0.015% over 1000h at +155°C
- Dimensions: 0.157 inches length, 0.050 inches height, 0.0165 inches lead diameter
- Construction: Molded epoxy body, copper alloy leads with Ni/Pd/Au finish
- Environmental Certifications: RoHS compliant, sulfur resistant, moisture resistant MIL STD 202, method 106
- Voltage Coefficient: < 0.1 ppmV
- Maximum Working Voltage: 100V
- Terminals: 8 pin SOIC, surface mount
- Reliability: Passes MIL standards for shock, vibration, and soldering heat

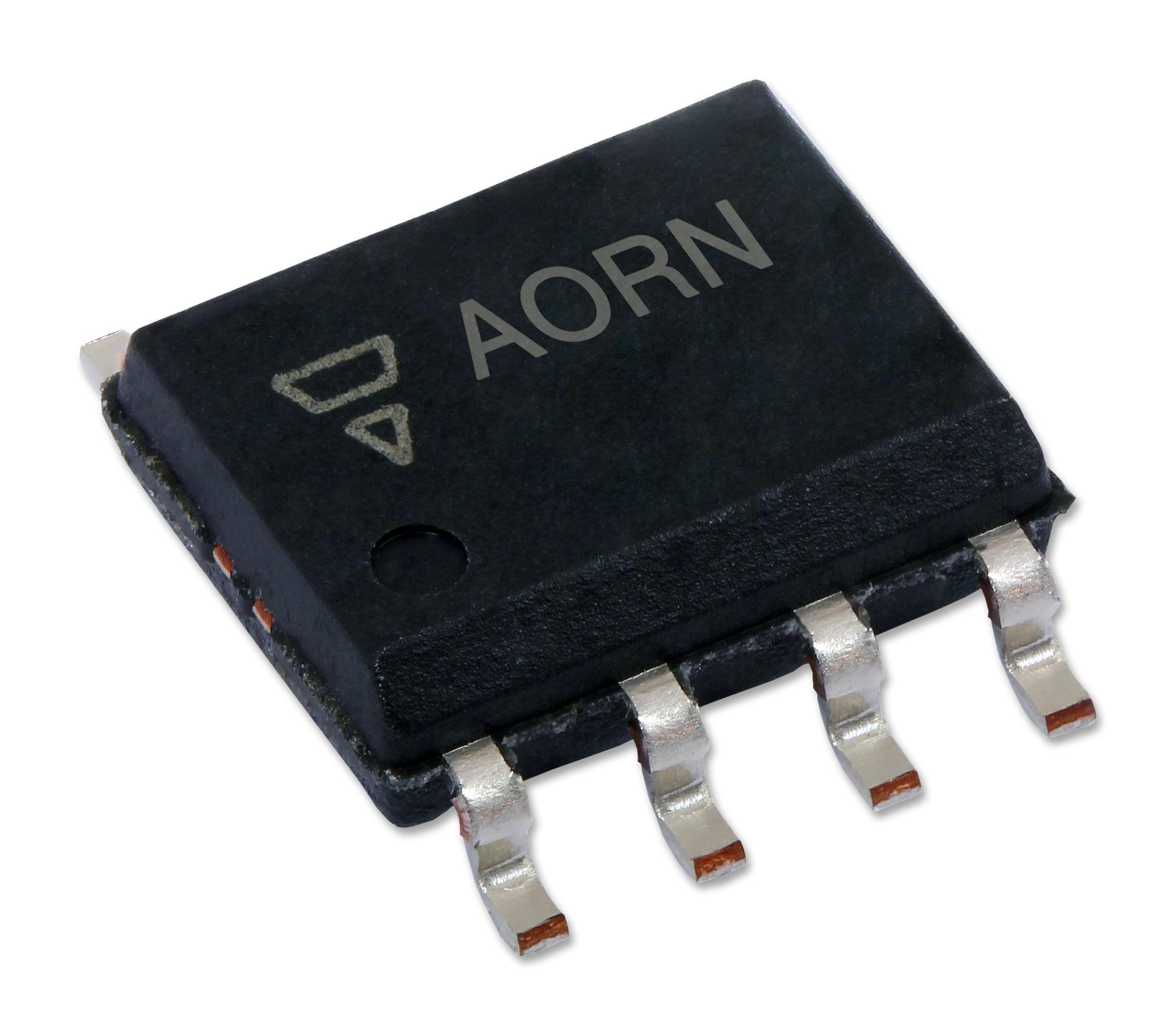

Buy the Vishay Series AORN Automotive Voltage Divider: AORN4992AT3
Order the Vishay AORN4992AT3 thin film resistor network online today to ensure high precision, moisture resistance, and long-term stability for your automotive, industrial, and signal conditioning applications. Designed with robust tantalum nitride film on alumina substrate, this network offers excellent electrical stability, low temperature coefficient, and sulfur resistance. Its compact 8-pin SMT package simplifies integration into dense circuits, providing reliable performance under demanding environmental conditions. Purchase now for quality and durability in your critical electronic systems.
Get Vishay AORN4992AT3 today—built for precision, automotive reliability, and moisture resistance in compact surface-mount design.
Frequently Asked Questions
Where can I buy Vishay AORN4992AT3?
You can click on the BUY or RFQ button to purchase AORN4992AT3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AORN4992AT3?
You can download the AORN4992AT3 datasheet or visit the Vishay website for support.
Who is the manufacturer of AORN4992AT3?
Vishay
