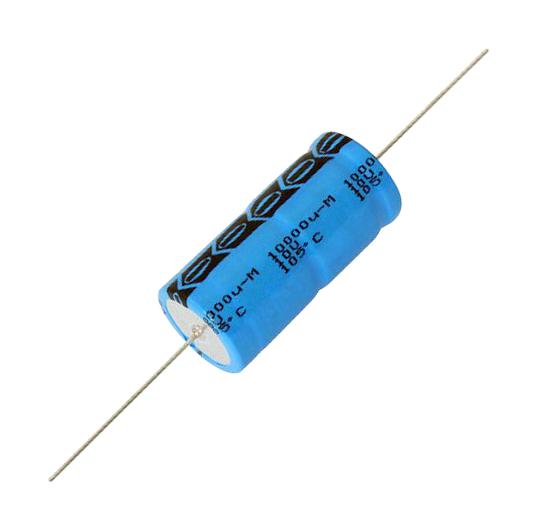

Vishay MAL212517821E3 Miniature Aluminum Capacitor
The 125 ALS series axial miniature aluminum electrolytic capacitor is designed for long life and high reliability. It features a cylindrical aluminum case with axial leads, insulated with a blue sleeve, suitable for industrial, automotive, EDP, and telecommunication applications. Common uses include filtering, buffering in switch-mode power supplies, coupling, decoupling, and timing circuits. It offers a lifespan of up to 10,000 hours at 105°C, high ripple current capacity, and a compact, lightweight design ideal for portable equipment. Taped versions up to 15mm diameter are available for auto-insertion, though the mounting ring variant is not in insulated form.
Vishay MAL212517821E3 Miniature Aluminum Capacitor Specifications:
- Capacitance range: 27 UF to 18,000 pF
- Rated voltage: 10 V to 63 V
- Tolerance on capacitance: +20%
- Temperature range: -40°C to +105°C
- Lifespan at 105°C: 5000 to 10,000 hours
- Shock and vibration resistant, conforming to IEC 60068 40/105/56
- Axial leads, cylindrical aluminum case, insulated with blue sleeve
- Available case sizes: 6.5x18 mm to 21x38 mm
- Taped versions up to case size 15x30 mm for automatic insertion
- Shelf life: 500 hours at 0V and 105°C
- Charge and discharge proof, high ripple current capacity
- Part of Vishay's long-life, high-reliability series
Buy the Vishay Series 125 ALS Aluminum Electrolytic Capacitor: MAL212517821E3
Purchase the Vishay 125 ALS aluminum electrolytic capacitor online today. Engineered for long life and high reliability, this small-sized capacitor is perfect for industrial, automotive, and telecom applications. It features axial leads, insulated cylindrical aluminum case, and high ripple current capacity, making it suitable for smoothing, filtering, buffering, and timing in switch-mode power supplies. The series offers up to 10,000 hours lifespan at 105°C, with taped versions available for automatic insertion. Ensure dependable performance in your electronic designs—buy now for quick delivery and superior quality.
Get Vishay 125 ALS ALuminum Electrolytic Capacitor today—built for long-lasting reliability and high ripple current capacity.
Frequently Asked Questions
Where can I buy Vishay MAL212517821E3?
You can click on the BUY or RFQ button to purchase MAL212517821E3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part MAL212517821E3?
You can download the MAL212517821E3 datasheet or visit the Vishay website for support.
Who is the manufacturer of MAL212517821E3?
Vishay
