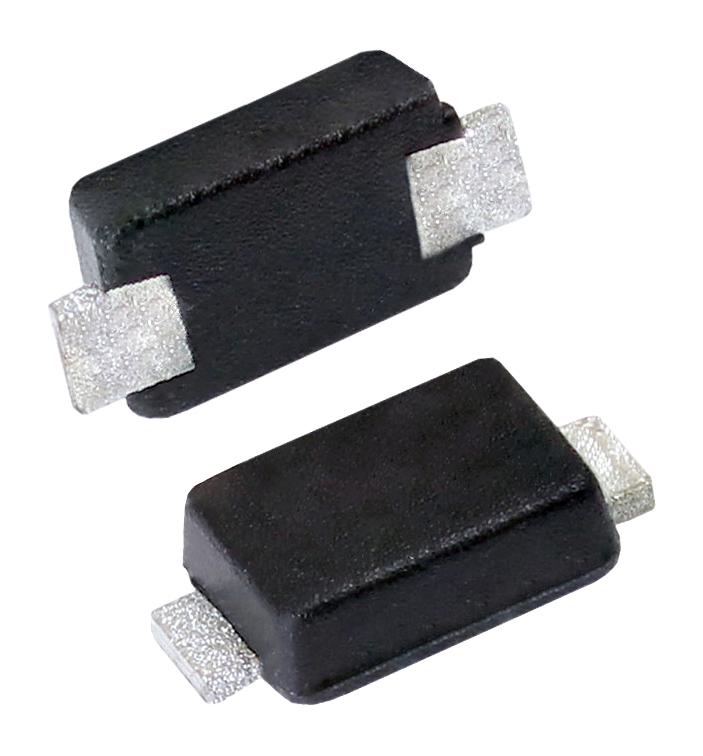

Vishay AR1FKHM3H Surface-Mount Avalanche Rectifier
The Vishay AR1FK series surface-mount fast avalanche rectifiers are designed for high-frequency switching and power rectification in industrial, automotive, and telecommunication applications. Featuring a glass passivated pellet chip junction, these low-profile, RoHS-compliant devices are suitable for automated placement and meet MSL level 1, J-STD-020 standards. With a maximum repetitive peak reverse voltage of 800 V, they handle peak forward surge currents of 26 A and operate within -55°C to +175°C. Ideal for use in power supplies, inverters, and converters demanding high reliability and efficient performance.
Vishay AR1FKHM3H Surface-Mount Avalanche Rectifier Specifications:
- Package: SMF (DO-219AB)
- Maximum Repetitive Peak Reverse Voltage: 800 V
- Peak Forward Surge Current: 26 A
- Maximum Forward Voltage: 1.15 - 1.4 V at 125°C
- Maximum Reverse Current: 100 pA at rated Vp, 125°C
- Avalanche Energy: 20 mJ at 1 A, 25°C
- Operating Temperature Range: -55°C to +175°C
- Mounting: Surface-mount, RoHS-compliant, halogen-free
- Polarity: Cathode marked with color band
- Thermal Resistance: Junction to ambient approximately 20°C/W
- Materials: Glass passivated pellet, matte tin plated leads
- Standards: AEC-Q101 qualified, meets MSL level 1
Buy the Vishay AR1FK – Reliable Avalanche Rectifier for Industrial Applications
Discover the Vishay AR1FK series, high-voltage surface-mount avalanche rectifiers ideal for industrial, automotive, and telecommunication power systems. With a maximum repetitive peak reverse voltage of 800 V, these devices ensure reliable operation in demanding environments. Their fast switching capability and low forward voltage make them suitable for high-frequency power conversion, inverter circuits, and power supplies. Certified for RoHS compliance, with robust construction and high surge current handling, order online now to benefit from quality, performance, and easy integration into your designs.
Order your Vishay AR1FK series avalanche rectifier today and ensure high-performance power rectification for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay AR1FKHM3H?
You can click on the BUY or RFQ button to purchase AR1FKHM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AR1FKHM3H?
You can download the AR1FKHM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of AR1FKHM3H?
Vishay
