Vishay AR1FMHM3H Surface-Mount Avalanche Diodes
The AR1FM series are low-profile surface-mount fast avalanche rectifiers designed for high-frequency switching and general power rectification applications. These RoHS-compliant, halogen-free diodes feature glass passivated pellet chips and are available in eSMP® packages compatible with automated PCB assembly. Qualified to AEC-Q101 standards, they handle repetitive peak reverse voltages up to 1000V, with fast recovery times and low forward voltage, making them ideal for power supplies, inverters, and telecommunication systems. Their compact design ensures reliable performance across automotive and consumer electronics sectors.
Vishay AR1FMHM3H Surface-Mount Avalanche Diodes Specifications:
- Maximum Repetitive Peak Reverse Voltage: 200V (AR1FD), 400V (AR1FG), 600V (AR1FJ), 800V (AR1FK), 1000V (AR1FM)
- Maximum Forward Surge Current: 26-30A depending on model
- Peak Forward Surge Current: 30A (AR1FD), 26A (AR1FG), 25A (AR1FJ), 26A (AR1FK), 20A (AR1FM)
- Maximum Forward Voltage: 1.15V at 125°C, 1.4V at 125°C
- Maximum Reverse Current: 100pA at rated voltage and 125°C
- Typical Junction Capacitance: 9.3-12.6pF at 4.0V, 1MHz
- Operating Junction and Storage Temperature: -55°C to +175°C
- Thermal Resistance Junction-to-Ambient: 20-130°C/W depending on mounting conditions
- Package: SMF (DO-219AB), RoHS and halogen-free, MSL level 1
- Features: Glass passivated junction, fast recovery times (~120-140ns), compatible with SOD-123W outline
- Material: Matte tin plated leads, solderable per J-STD-002

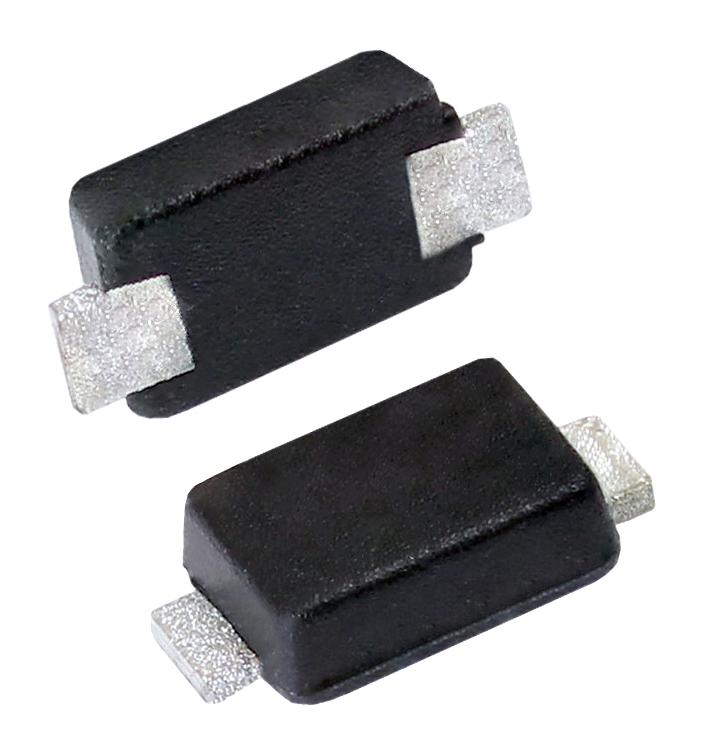

Buy the Buy Vishay Surface-Mount Avalanche Rectifiers Part Number AR1FM Online
Secure your Vishay AR1FM avalanche rectifier today through our online store. Designed for high-voltage, fast switching applications, it ensures efficient power rectification in telecommunication, automotive, and consumer electronics. With RoHS compliance and AEC-Q101 qualification, it offers reliability and safety. Whether you need a robust diode for inverter circuits or power supplies, purchasing online guarantees fast delivery and authentic Vishay quality. Optimize your electronic designs by ordering the AR1FM series now for superior performance and durability.
Buy Vishay AR1FM now and experience unmatched reliability and high-speed performance in power conversion applications.
Frequently Asked Questions
Where can I buy Vishay AR1FMHM3H?
You can click on the BUY or RFQ button to purchase AR1FMHM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AR1FMHM3H?
You can download the AR1FMHM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of AR1FMHM3H?
Vishay
