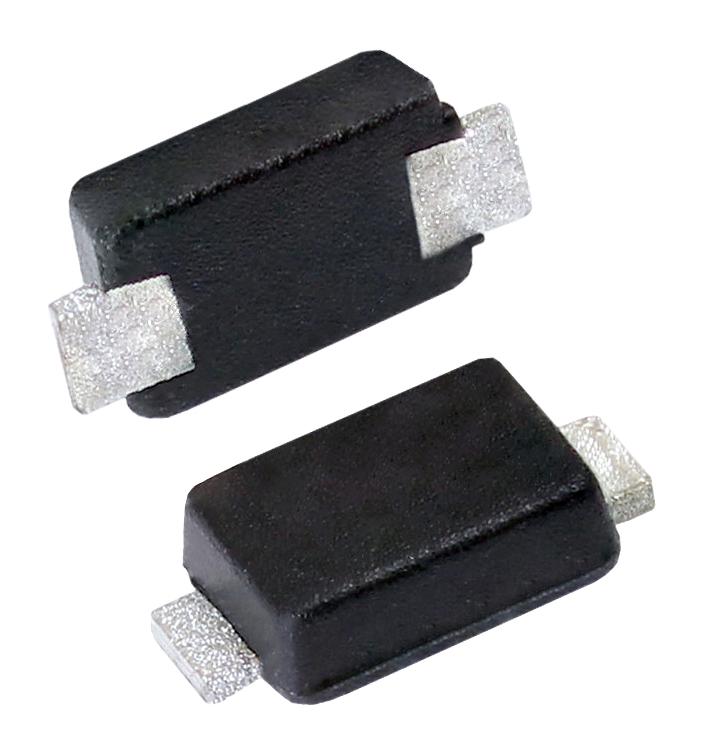

Vishay AS1FDM3H Avalanche Surface Mount Rectifier
The Vishay AS1FD-M3/H is a standard avalanche surface mount rectifier suitable for a wide range of applications including power supplies, inverters, converters, and freewheeling diodes. Its low profile package, glass passivated pellet chip junction, and low forward voltage drop contribute to efficient power rectification. The device is AEC-Q101 qualified, making it suitable for automotive applications. It is also wave and reflow solderable and meets MSL level 1 standards.
Vishay AS1FDM3H Avalanche Surface Mount Rectifier Specifications:
- IF(AV): 1.5 A
- VRRM: 200 V, 400 V, 600 V, 800 V, 1000 V
- IFSM: 30 A
- IR: 0.2 μA
- VFat IF= 1 A: 0.84 V
- EAS: 20 mJ
- TJmax: 175 °C
- Package: SMF (DO-219AB)
- Circuit configuration: Single
- Material categorization: halogen-free, RoHS-compliant
- Automotive ordering code: base P/NHM3
Buy the AS1FD-M3/H VISHAY Avalanche Surface Mount Rectifier | myMectronic
Purchase the Vishay AS1FD-M3/H rectifier securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay AS1FDM3H?
You can click on the BUY or RFQ button to purchase AS1FDM3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AS1FDM3H?
You can download the AS1FDM3H datasheet or visit the Vishay website for support.
Who is the manufacturer of AS1FDM3H?
Vishay
