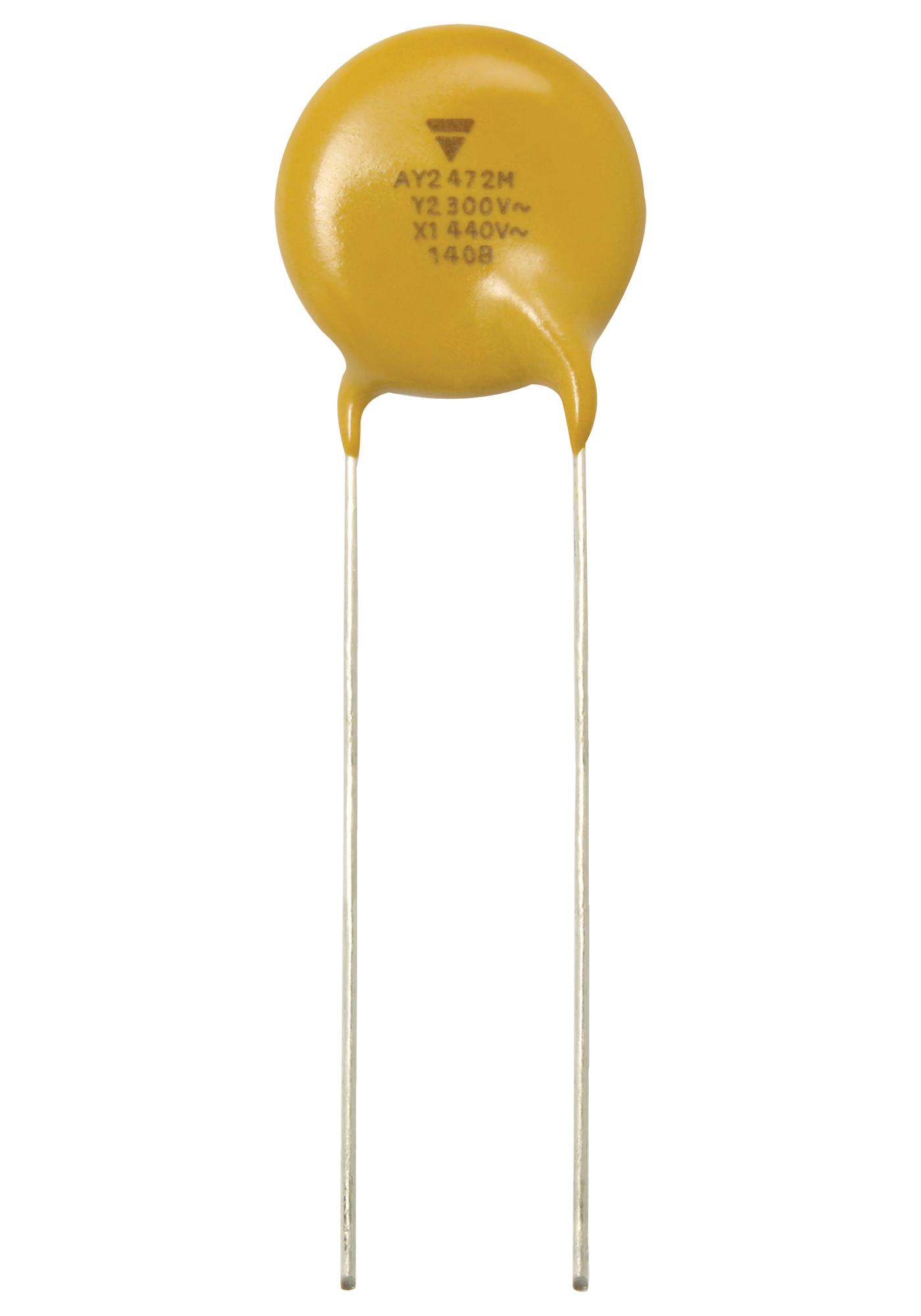

Vishay AY2101K29Y5SS63L7 Automotive Ceramic Capacitor
This ceramic capacitor series offers automotive-grade AC line rated protection with Class X1 and Y2 classifications, supporting applications like line filtering and coupling in EV chargers and hybrid vehicle systems. Designed for reliable performance in temperatures from -55°C to +125°C, it features epoxy resin coating for safety and flame retardance, with high insulation resistance and capacitance range from 10 pF to 4700 pF. Available with straight or kinked leads, these capacitors meet IEC, UL, VDE, and CSA standards, ensuring durability through testing for temperature cycles and humidity exposure, ideal for demanding automotive and industrial environments.
Vishay AY2101K29Y5SS63L7 Automotive Ceramic Capacitor Specifications:
- Capacitance Range: 10 pF to 4700 pF
- Voltage (Vac): 300 | 440
- Temperature Range: -55°C to +125°C
- Dielectric Material: Ceramic Class 1 (U2J, Y5S, YSU)
- Operating Temperature: -55°C to +125°C
- Insulation Resistance: 210000 MΩ
- Dissipation Factor: Max. 0.3% at 1 MHz (Class 1), Max. 2.5% at 1 kHz (Class 2)
- Coating: Flame retardant epoxy resin UL 94 V-0
- Mounting: Radial, straight or kinked leads, lead spacing options 5 mm, 7.5 mm, 10 mm
- Certifications: IEC 60384-14, UL 60384-14, VDE, CSA, CQC
- Test Voltage: 2600 Vac for 2s (Component test), 2600 Vac for 60s (sampling test)
- Application: Line filter, primary-secondary coupling, DC/DC converters
Buy the VISHAY AY2 – Reliable AC Line Capacitor for Industrial Applications
Purchase VISHAY AY2 ceramic AC line rated capacitors online today and benefit from high-quality materials, robust construction, and compliance with international safety standards. Designed for demanding environments like electric vehicle chargers and industrial power supplies, these capacitors offer trusted durability, excellent temperature tolerance, and environmental resistance. Secure your supply chain with fast online ordering and get reliable components that meet IEC, UL, VDE, and CSA certifications. Perfect for applications requiring stability and safety under high voltage and temperature conditions.
Buy VISHAY AY2 series ceramic AC capacitors now and ensure high reliability in demanding automotive and industrial systems.
