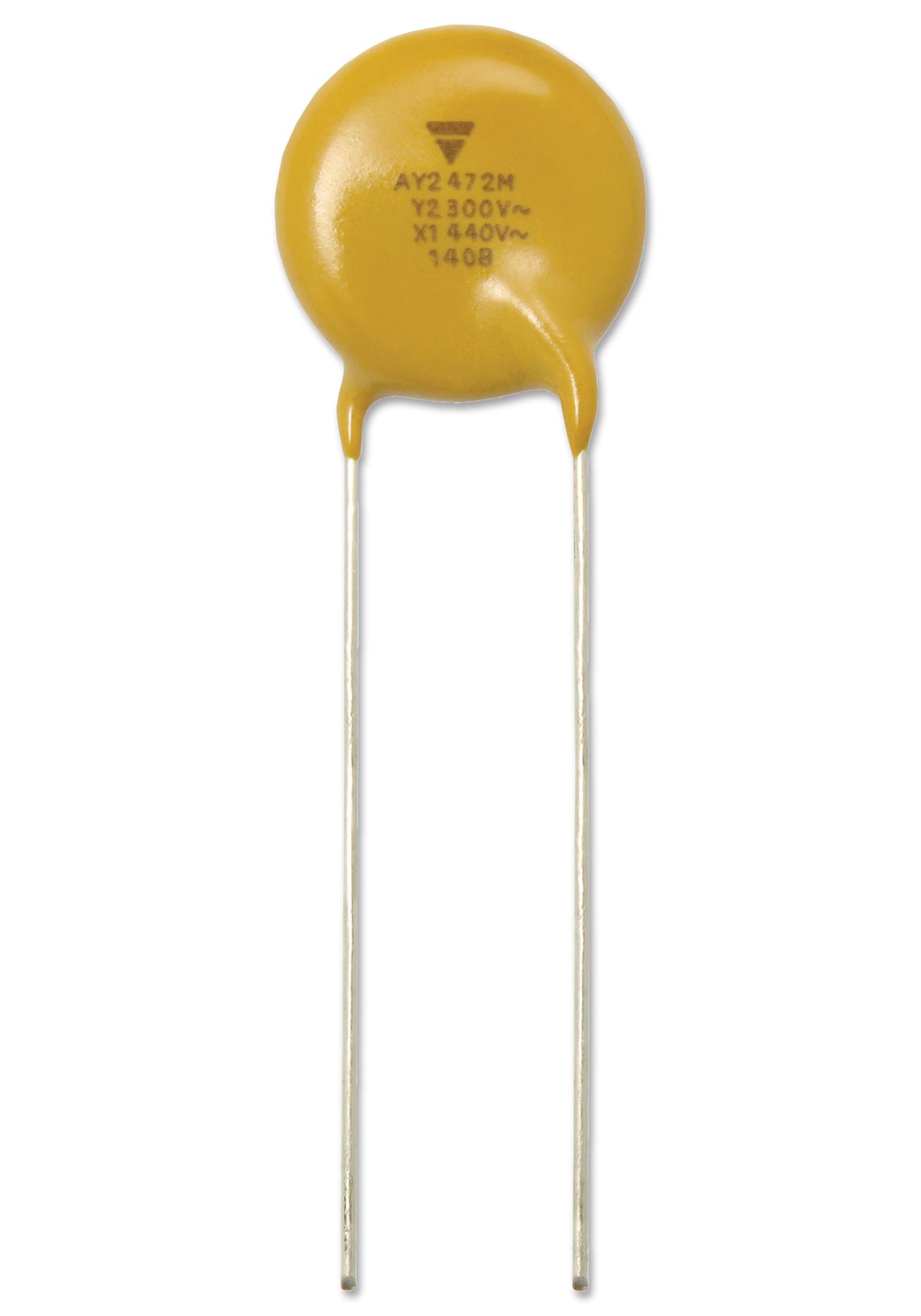

Vishay AY2102M29Y5US63L7 Ceramic Capacitor
The AY2 Series ceramic disc capacitors by Vishay BCcomponents are rugged, high-reliability components designed for automotive applications including line filters, battery chargers, and DC/DC converters for PHEV/EV and HEV systems. They feature ceramic dielectric materials such as Y5S, Y5U, and U2J, accommodate voltage ratings up to 440 Vac, and operate within -55°C to +125°C. Their epoxy resin coating meets UL 94 V-0 standards, ensuring flame retardance. Equipped with straight leads of adjustable spacing (5, 7.5, 10 mm), they are suitable for demanding automotive environments, meeting IEC, UL, VDE, CSA approvals, and qualified for AEC-Q200 reliability tests.
Vishay AY2102M29Y5US63L7 Ceramic Capacitor Specifications:
- Voltage (Vac): 300 | 440
- Capacitance range: 10 pF to 4700 pF
- Dielectric types: u2s, u2u, Y5S, Y5U
- Operating temperature: -55 °C to +125 °C
- Insulation resistance: ≥ 10,000 MΩ
- Dissipation factor: ≤ 2.5 %
- Approvals: IEC 60384-14, UL 60384-14, VDE, CSA, CB, UL, CQC
- Lead spacing options: 5 mm, 7.5 mm, 10 mm
- Encapsulation: epoxy resin, UL 94 V-0 rated
- Operating frequency: tested up to 1 MHz with minimal loss
- Test voltage: 2600 Vac (component test)
- Durability: 1000 temperature cycles (-55 °C to +125 °C)
Buy the Buy Vishay AY2 Series Part Number AY2102M29Y5US63L Online
Enhance your automotive circuitry with Vishay AY2 Series ceramic capacitors, engineered for reliability in high-voltage conditions up to 440 Vac. Suitable for line filters, battery chargers, and DC/DC converters in PHEV/EV and hybrid vehicles, these capacitors operate from -55°C to +125°C and feature epoxy resin coating for flame retardance and safety. With multiple lead spacing options, high insulation resistance, and compliance with global safety standards, buy online today for dependable performance in demanding automotive environments.
Buy Vishay AY2 Series part number AY2102M29Y5US63L now and ensure reliable filtering performance for automotive and EV applications.
Frequently Asked Questions
Where can I buy Vishay AY2102M29Y5US63L7?
You can click on the BUY or RFQ button to purchase AY2102M29Y5US63L7 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AY2102M29Y5US63L7?
You can download the AY2102M29Y5US63L7 datasheet or visit the Vishay website for support.
Who is the manufacturer of AY2102M29Y5US63L7?
Vishay
