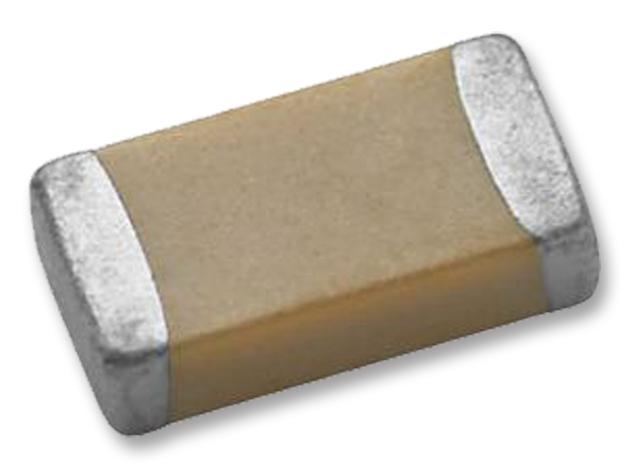

Vishay HV1825A560JXHATHV High Voltage Ceramic Capacitor
High-voltage multilayer ceramic chip capacitor designed for use in switching power supplies, lighting, and AC applications. Features high reliability, thermal shock resistance, and a polymer termination option for enhanced mechanical protection. Capacitance ranges from 15 pF to 3.3 nF, with voltages up to 5000 V. Suitable for filtering, snubber circuits, and input/output filtering. Built with noble metal electrodes for stability and RoHS compliance, offering excellent dielectric strength and low dissipation factors under demanding high-voltage conditions.
Vishay HV1825A560JXHATHV High Voltage Ceramic Capacitor Specifications:
- Capacitance Range: 15 pF to 3.3 nF
- Voltage Range: 3000 V to 5000 Vac
- Operating Temperature: -55 °C to +125 °C
- Temperature Coefficient of Capacitance: 0 ppm/°C to +30 ppm/°C
- Dissipation Factor: 0.1 % at 1 MHz for <1000 pF, 0.1 % at 1 kHz for >1000 pF
- Insulating Resistance: 100,000 MΩ at +25 °C, 10,000 MΩ at +125 °C
- Dielectric Strength: 120 % of rated voltage
- Physical Dimensions: Case length 0.177 inches (4.50 mm), width 0.106 inches (2.70 mm), thickness 0.035 inches (0.90 mm)
- Termination: RoHS compliant, 100% tin plated, polymer layer available
- Environmental Status: Lead-free, RoHS compliant, VISHAY GREEN
Buy the Vishay Series HV High Voltage Ceramic Capacitor: HV1825A560JXHATHV
Purchase Vishay HV1825A560JXHATHV high-voltage ceramic capacitor online today. Designed for switching power supplies, lighting, and filtering applications, this reliable component ensures excellent dielectric strength and thermal stability. Featuring a voltage rating up to 5000 V and a capacitance range of 15 pF to 3.3 nF, it offers low dissipation factors, RoHS compliance, and polymer termination for enhanced mechanical protection. Ideal for engineers seeking durable, high-performance capacitors for demanding high-voltage circuits.
Get Vishay HV1825A560JXHATHV high-voltage ceramic capacitor today—built for precision, reliability, and long-lasting durability in demanding applications.
