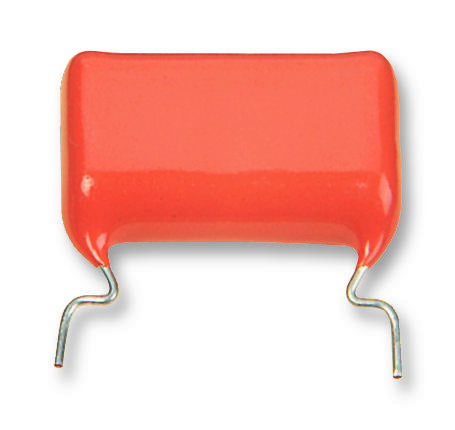

Vishay BFC237530223 High-Voltage Polypropylene Film Capacitor
The Vishay BCcomponents KP/MKP series are high-performance AC and pulse metallized polypropylene film capacitors designed for applications involving high currents and steep voltage pulses, such as deflection circuits in TV sets. Constructed with metallized and aluminum electrodes, these capacitors feature internal serial construction, flame-retardant epoxy encapsulation, and are available in various pitches, voltages, and capacitance ranges. They comply with IEC 60384-17 standards, have temperature ratings up to 105°C, and are supplied loose or in tape for automated mounting, suitable for reliable operation in demanding electronic circuits.
Vishay BFC237530223 High-Voltage Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized and aluminum
- Construction: Internal serial
- Rated (DC) Voltage: 630 V, 1000 V, 1600 V, 2000 V, 1000 V, 1600 V, 2000 V, 2500 V
- Rated (AC) Voltage: 300 V, 400 V, 500 V, 600 V, 600 V, 600 V, 600 V, 600 V, 400 V, 600 V
- Rated Peak-to-Peak Voltage: 850 V, 1100 V, 1400 V, 1700 V, 850 V, 1100 V, 1400 V, 1700 V, 850 V, 1100 V
- Capacitance Range: 0.1 nF to 270 nF (E24 series), various options available
- Capacitance Tolerance: +5%, -5%
- Temperature Rating: Up to 105°C, with long-life grades for C > 5.6 nF
- Impregnation: Flame retardant epoxy (UL V-0)
- Compliance: RoHS and halogen-free
- Lead Type: Tinned wire, packages include loose, taped, and lock lead options
- Dimensions: Vary by capacitance and pitch, detailed specifications available for each variant
- Standards: IEC 60384-17, climatic class 55/105/56, tested for vibration, moisture, and temperature cycling
Buy the Vishay Series KP MKP Metallized Polypropylene Capacitors: BFC237530223
Enhance your electronic projects with Vishay’s high-voltage metallized polypropylene film capacitors. Designed for demanding pulse and deflection circuits, these capacitors offer excellent stability, long life, and proven reliability. Available in various capacitance values, pitches, and voltages, they meet stringent IEC standards and are RoHS compliant. Purchase online now to ensure your designs operate efficiently in high-current environments. Secure your supply of premium film capacitors with fast delivery and expert support to maximize your project's performance.
Order your Vishay Series KP MKP metallized polypropylene film capacitor today and ensure reliable performance in high-current pulse and deflection circuits.
Frequently Asked Questions
Where can I buy Vishay BFC237530223?
You can click on the BUY or RFQ button to purchase BFC237530223 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC237530223?
You can download the BFC237530223 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC237530223?
Vishay
