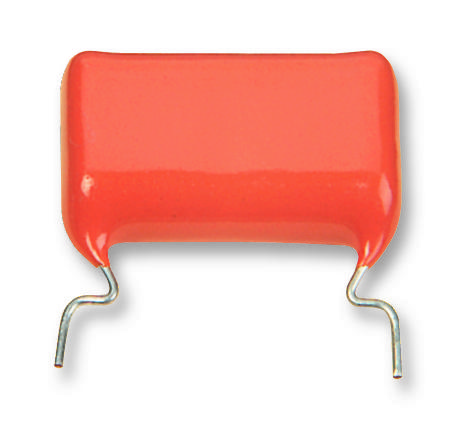

Vishay BFC237540223 High-Voltage Polypropylene Capacitor
High-voltage metallized polypropylene film capacitor designed for pulse and high-current applications such as deflection circuits in TVs. Features include construction with metallized and aluminum electrodes, rated voltages up to 2000V, and a temperature rating of 85°C with maximum application temperature of 105°C. The capacitors are supplied loose in boxes or taped for automatic insertion, with various pitches from 7.5 mm to 27.5 mm and capacitance ranges from 0.1 nF to 270 nF. They comply with IEC 60384-17 and RoHS standards, featuring flame-retardant epoxy encapsulation and tinned leads for reliability.
Vishay BFC237540223 High-Voltage Polypropylene Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized and aluminum
- Construction: Internal serial construction
- Rated DC Voltage: Up to 2000 V
- Rated AC Voltage: Up to 600 V
- Rated Peak-to-Peak Voltage: Up to 1700 V
- Capacitance Range: 0.1 nF to 270 nF
- Capacitance Tolerance: ±5%
- Temperature Rating: 85°C, Max application temperature 105°C
- Impulse voltage: Up to 1700 V peak
- Encapsulation: Flame-retardant epoxy (UL 94 V-0)
- Lead Material: Tinned wire
- Sizes and pitches vary: pitches from 7.5 mm to 27.5 mm, dimensions include lengths from approximately 7.0 mm to 16.0 mm, widths from 18.5 mm to 30.0 mm
- Standards: IEC 60384-17, RoHS compliant
- Performance grades: Grade 1 (long life), Grade 2 (standard)
- Compliance: RoHS, halogen-free certifications
Buy the Buy Vishay BFC237540223 High-Voltage Polypropylene Capacitor Part Number BFC237540223 Online
Order Vishay BFC237540223 high-voltage polypropylene capacitor online now to ensure your pulse and deflection circuits operate with maximum efficiency. Designed for applications up to 2000V and capable of handling steep pulses with a maximum temperature of 105°C, this capacitor offers reliable performance and long service life. Whether for defense, industrial, or television deflection circuits, this high-quality film capacitor is easy to install with various pitches and capacitance values. Purchase today for prompt delivery and technical support tailored to your needs.
Get Vishay BFC237540223 high-voltage polypropylene capacitor today—designed for pulse and high-current deflection circuits with long-lasting reliability.
