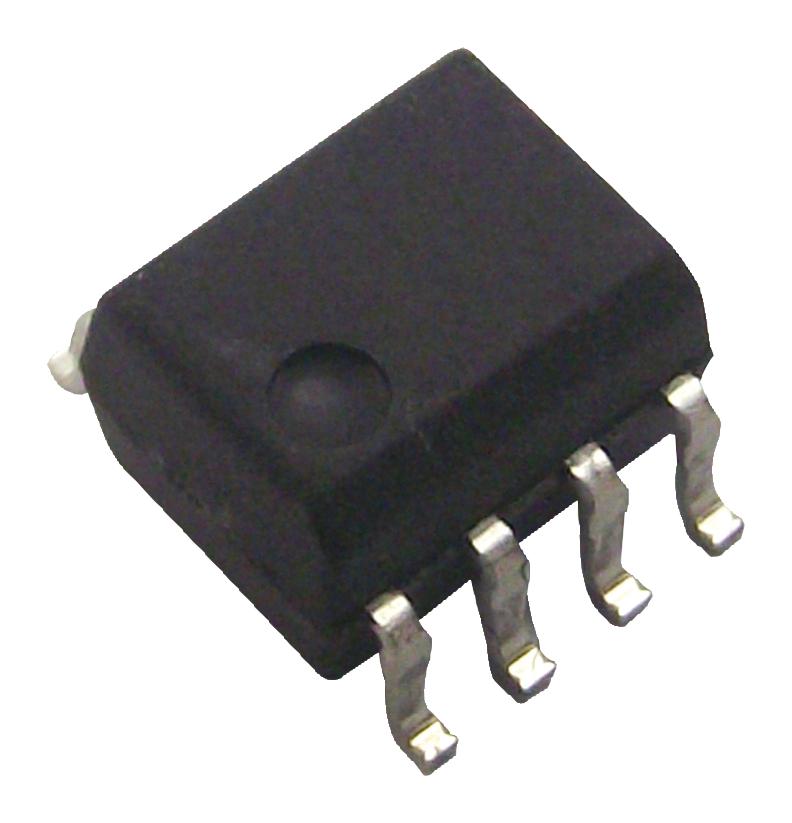

Vishay IL300FX007 High-Gain Linear Optocoupler
The IL300-F-X007 is a high-gain, stable linear optocoupler featuring an AlGaAs infrared LED coupled with a PIN photodiode in a bifurcated arrangement. It includes an isolated feedback mechanism that monitors a portion of the LED's flux to generate a control signal for servoing the LED drive current, effectively compensating for non-linearities, as well as temperature and time variations. The output PIN photodiode produces a signal linearly related to the optical flux, ensuring stable input-output coupling. The device offers wide bandwidth exceeding 200 kHz, low input-output capacitance, and high gain stability with typically ±0.005%/°C. It supports both AC and DC signals, making it suitable for power management, sensing and instrumentation, medical applications, audio systems, and communication/networking.
Vishay IL300FX007 High-Gain Linear Optocoupler Specifications:
- Device Type: Linear optocoupler with feedback control
- LED Wavelength: 890 nm
- Maximum Forward Current: 60 mA
- Bandwidth: > 200 kHz
- Gain Stability: ±0.005%/°C
- Input-Output Capacitance: Low, approximately 1 pF
- Isolation Voltage: > 5300 Vms
- Power Dissipation (Input): 160 mW (max); Power Dissipation (Output): 50 mW (max)
- Junction Temperature (Max): 100°C
- Operating Temperature Range: -55°C to +100°C
- RoHS Compliant
- Package: SMD, multiple options available
- Linearity: 0.01% servo linearity
- Photodiode Mode: Photoconductive and photovoltaic
- Application: Feedback in power supplies, medical sensors, audio interfacing, process control, digital communication
Buy the Vishay Series IL300 High-Gain Linear Optocoupler: IL300-F-X007
Experience the reliability and stability of the Vishay IL300-F-X007 high-gain linear optocoupler, designed for accurate signal transfer and isolated control in industrial, medical, and communication systems. Its AlGaAs IRLED and PIN photodiode in a bifurcated arrangement provide exceptional linearity, wide bandwidth over 200 kHz, and high stability of ±0.005%/°C. With low input-output capacitance and RoHS compliance, it's perfect for power management, sensing, and instrumentation applications requiring precise feedback and galvanic isolation. Purchase online today for professional-grade performance.
Get Vishay IL300-F-X007 today—built for precision and long-lasting durability in high-stability linear optocouplers.
Frequently Asked Questions
Where can I buy Vishay IL300FX007?
You can click on the BUY or RFQ button to purchase IL300FX007 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IL300FX007?
You can download the IL300FX007 datasheet or visit the Vishay website for support.
Who is the manufacturer of IL300FX007?
Vishay
