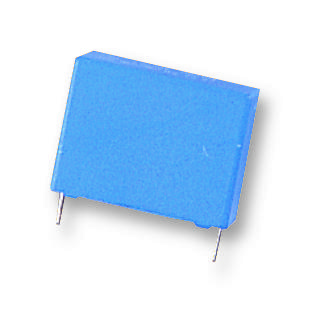

Vishay BFC237882473 High-Voltage Film Capacitor
These high-voltage metallized polypropylene film capacitors are designed for applications involving steep pulses, such as switch mode power supplies and motor control circuits. Rated for voltages up to 2000 V peak, they feature internal serial construction, dielectric polypropylene film, and metallized electrodes for long service life and reliability. Encapsulated in flame-retardant plastic cases with tinned wire leads, they are suitable for high-frequency and pulse applications, with various pitches, dimensions, and voltage ratings available for optimal system integration.
Vishay BFC237882473 High-Voltage Film Capacitor Specifications:
- Capacitance range: 0.002 pF to 0.68 uF
- Rated DC voltage: 630 V, 1000 V, 1600 V, 2000 V
- Rated AC voltage: 300 Vac, 400 Vac, 500 Vac, 600 Vac
- Maximum application temperature: 85°C
- Dielectric: Polypropylene film
- Electrodes: Metallized film
- Construction: Internal serial
- Encapsulation: Flame-retardant plastic case and epoxy resin
- Leads: Tinned wire
- Climatic testing: IEC 60068-1 55/085/56
- Rated pulse slope: up to 1700 V (pulse slope depends on pitch and voltage rating)
- Impedance at 10 kHz and 100 kHz: < 10x10^-4 to < 75x10^-4 depending on capacitance
- Test voltage between leads and case: > 100,000 MΩ at 500 V
- Tan δ at 10 kHz and 100 kHz: varies with capacitance, below 55x10^-4
- Pulse withstand voltage: up to 3200 V for 2000 V rated models
Buy the Vishay BFC378 – Reliable High-Voltage Film Capacitors for Industrial Applications
Enhance your power systems with Vishay BFC378 high-voltage film capacitors suitable for pulse and switching applications. Rated up to 2000V peak, they feature robust metallized polypropylene dielectric, flame-retardant encapsulation, and high reliability. Perfect for industrial power supplies, motor control, and high-frequency circuits, these capacitors offer excellent stability, long service life, and compliance with RoHS and halogen-free standards. Secure your system's performance today by purchasing online—enjoy fast delivery, competitive pricing, and technical support for your deployment needs.
Buy Vishay BFC378 high-voltage polypropylene film capacitors now and experience unmatched reliability and performance in pulse power systems.
Frequently Asked Questions
Where can I buy Vishay BFC237882473?
You can click on the BUY or RFQ button to purchase BFC237882473 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC237882473?
You can download the BFC237882473 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC237882473?
Vishay
