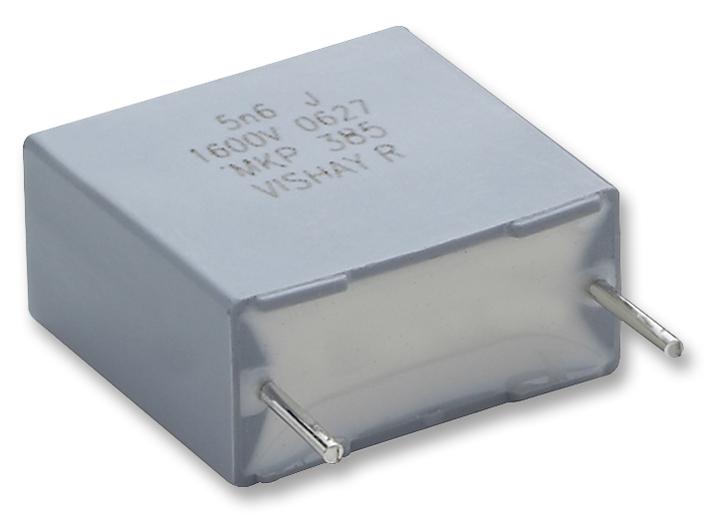

Vishay BFC238560102 Power Capacitor
Reliable metallized polypropylene film capacitor suitable for applications with steep pulses such as switch mode power supplies, electronic lighting, and motor control. Features include internal serial construction, low contact resistance, small dimensions for high-density packaging, and compliance with RoHS standards. Rated for 1600 V DC, 550 V AC, with temperature ratings up to 85°C and max application temperature of 110°C. Encased in flame-retardant plastic, it offers excellent stability, low loss dielectric, and robust construction for demanding electronic circuits.
Vishay BFC238560102 Power Capacitor Specifications:
- Capacitance Range: 0.00047 to 0.033 µF
- Rated DC Voltage: 1600 V
- Rated AC Voltage: 550 V
- Maximum Application Temperature: 110°C
- Temperature Rating: 85°C
- Dielectric: Polypropylene film
- Electrodes: Metallized
- Construction: Internal serial
- Encapsulation: Flame retardant plastic case, UL-class 94 V-0
- Climatic Testing Class: 55/110/56
- Capacitance Tolerance: +5 %
- Lead Type: Tinned wire
- Size and Pitch: Diameter varies with model, typical pitches 7.5 mm, 10 mm, 15 mm
- Features: Low loss dielectric, small dimensions, suitable for high-density packaging
Buy the VISHAY BFC238560102 – Reliable Power Capacitor for Industrial Applications
Purchase your VISHAY BFC238560102 high-voltage polypropylene film capacitor online today to ensure your power electronics and lighting systems operate reliably. This compact, RoHS-compliant component rated at 1600 V DC and 550 V AC offers low loss dielectric and robust construction suitable for demanding applications like SMPS, ballast, and motor control. With excellent stability and flame-retardant encapsulation, it guarantees high performance and long service life. Get it now and elevate your project's efficiency and safety with trusted Vishay quality.
Order your VISHAY BFC238560102 power capacitor today and enhance your electronic circuit reliability with high-voltage polypropylene film technology.
Frequently Asked Questions
Where can I buy Vishay BFC238560102?
You can click on the BUY or RFQ button to purchase BFC238560102 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC238560102?
You can download the BFC238560102 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC238560102?
Vishay
