Vishay P11S1V0FLSY00102KA Modular Rotary Potentiometer
The P11S and P11A are versatile, modular rotary potentiometers designed for industrial, military, and audio applications. Featuring a 12.5 mm square single-turn control with multiple assembly options, these devices include cermet or conductive plastic elements, sealed shafts, concentric options, and integrated switch modules. Their electrical travel is 270±10°, with resistance ranges from 1kΩ to 1MΩ and power ratings of up to 0.5W per module. Rugged construction ensures mechanical endurance of 50,000 cycles, and they are suitable for harsh environments with IP64 sealing and temperature ranges of -55°C to +125°C.
Vishay P11S1V0FLSY00102KA Modular Rotary Potentiometer Specifications:
- Mechanical travel: 300° ±5°
- Electrical travel: 270° ±10°
- Resistance range: 1kΩ to 1MΩ
- Power rating: 0.5W at 70°C per module
- Resistance tolerance: +20%, optional +10%, +5%
- Temperature range: -55°C to +125°C
- Sealing: IP64
- End stop torque: 35 N·cm for shafts ≤4mm, 80 N·cm for shafts ≥6mm
- Mechanical endurance: 50,000 cycles
- Operating humidity: up to 93%
- Vibration resistance: 10Hz to 55Hz, 0.75mm amplitude
- Weight: 7g to 9g per module

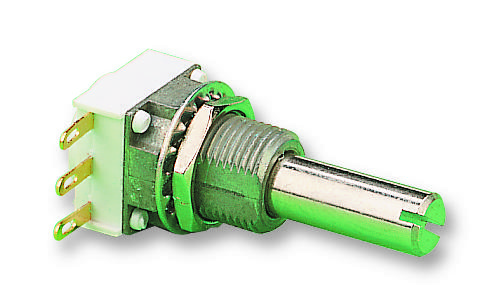

Buy the Vishay Series P11S Potentiometer: P11S1V0FLSY00102KA
Enhance your electronics with the Vishay P11S1V0FLSY00102KA modular rotary potentiometer. Designed for industrial, military, and audio use, it offers customizable resistance from 1kΩ to 1MΩ, sealed shafts, and switch modules. With a robust construction supporting 50,000 cycles and IP64 sealing, this device performs reliably in harsh environments — from -55°C to +125°C. Its precise electrical travel of 270°, combined with various mounting options, makes it ideal for demanding control and measurement applications. Order online now for quality and flexible configuration.
Get Vishay P11S1V0FLSY00102KA today—built for precision, durability, and flexible modular design in industrial and professional applications.
