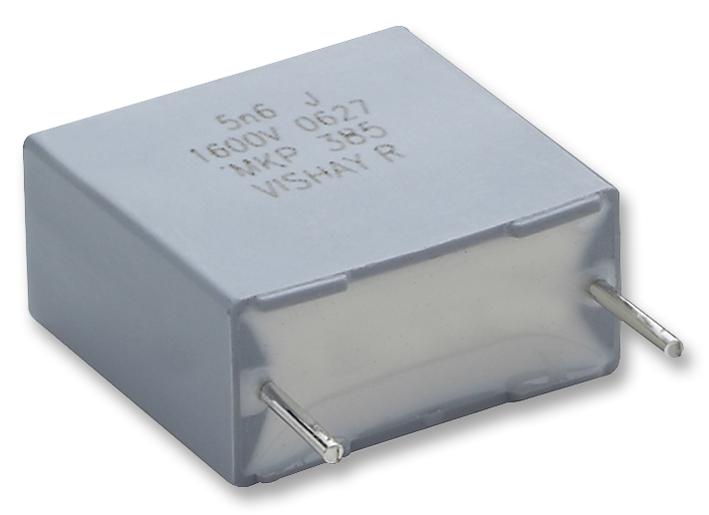

Vishay BFC238580222 Metallized Polypropylene Capacitor
Vishay BCcomponents offers MKP 385, a radial potted type of AC and pulse metallized polypropylene film capacitor. Designed for applications with steep pulses such as switch mode power supplies, electronic lighting ballast, and motor control circuits. Features include low contact resistance, small dimensions for high-density packaging, and flame-retardant plastic encapsulation. Rated for 1600 V DC, 550 V AC, with temperature ratings up to 110°C and stability Grade 2, making it suitable for long-term reliability in demanding electronic circuits.
Vishay BFC238580222 Metallized Polypropylene Capacitor Specifications:
- Capacitance Range: 0.00047 to 0.033 µF (E24 series)
- Rated DC Voltage: 1600 V, 2000 V
- Rated AC Voltage: 550 V, 700 V
- Peak-to-Peak Voltage: 1600 V, 2000 V
- Capacitance Tolerance: +5 %
- Temperature Range: -55°C to +110°C, maximum application temperature 110°C
- Insulation Resistance: > 100 MΩ at 500 V, 1 min
- Dielectric: Polypropylene film
- Electrodes: Metallized
- Construction: Internal serial
- Encapsulation: Flame retardant plastic case, UL 94 V-0
- Climatic Class: 55/110/56 (IEC 60068-1)
- Lead Configuration: Tinned wire, 7.5 mm pitch or bent back options
- Dimensions vary by capacitance and packaging, typically length 35–50 mm, height 12–18 mm
- RoHS compliant, Grade 2 stability grade
Buy the Buy Vishay MKP 385 Part Number BFC238580222 Online
Order the Vishay MKP 385 metallized polypropylene film capacitor now to benefit from its superior pulse handling, compact design, and reliable performance for power supplies, motor circuits, and lighting ballast. With rated voltages up to 1600 V DC and 550 V AC, it ensures long-term stability and safety standards compliance. Suitable for demanding environments, this high-quality capacitor features flame-retardant casing, low loss dielectric, and tolerance of +5 %. Purchase online for quick delivery and technical support to ensure your project’s success.
Get Vishay MKP 385 BFC238580222 today—built for precision, high voltage pulse handling, and long-lasting durability in demanding electronic applications.
