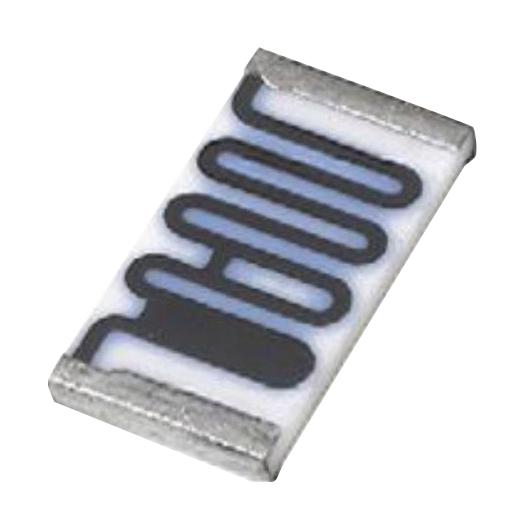

Vishay CRHA1206AF30M0FKEF High Voltage Thick Film Resistor
High voltage thick film chip resistor designed for robust performance and stability up to 3000 V, suitable for demanding industrial and electronic applications. Features nickel barrier termination with solder finish, Ruthenium oxide resistive elements, and glass encapsulation on alumina substrate, ensuring excellent environmental resistance. Operating temperature ranges from -55°C to +155°C, with life tested for less than 0.5% change at full rated power. Available in standard sizes like 1206, 1210, and 2512, with various resistance values and low coefficient options, ideal for precision and high-voltage circuits.
Vishay CRHA1206AF30M0FKEF High Voltage Thick Film Resistor Specifications:
- Resistive element: Ruthenium oxide
- Encapsulation: Glass
- Substrate: Alumina 96%
- Termination: Nickel barrier with solder finish
- Operating temperature: -55°C to +155°C
- Life stability: Less than 0.5% change at rated power
- Short time overload: Less than 0.5% AR
- Maximum working voltage: up to 3000 V depending on size
- Resistance values: 6M to 500M, calibrated at 100 Vp
- Size options: 1206, 1210, 2010, 2510, 2512
- Dimensions (in inches): 1206 - 0.125L x 0.063W x 0.025T, 1210 - 0.125L x 0.100W x 0.025T
- Vibration resistance: 100 g's, 6 ms pulses
- Thermal shock: -55°C to +150°C, 1000 cycles
- High temperature exposure: 2000 hours at +125°C
- Humidity: 85°C, 85% RH, 1000 hours + bias
- Soldering: +260°C for 10–12 seconds
Buy the Vishay Series CRHA High Voltage Resistor: CRHA1206AF30M0FKEF
Purchase the Vishay Series CRHA1206AF30M0FKEF high voltage thick film resistor online today and benefit from its exceptional stability, resistance to harsh environments, and high-voltage capability up to 3000 V. Ideal for industrial, electronic, and power circuit applications, this resistor features a Ruthenium oxide element, glass encapsulation, and nickel barrier termination for long-lasting performance. With sizes like 1206, 1210, and 2512, it offers a broad resistance range, low coefficient options, and proven reliability for high-stress environments, ensuring your projects meet exacting standards.
Order your Vishay Series CRHA1206AF30M0FKEF high voltage resistor today and ensure reliable performance for demanding electronic and industrial applications.
Frequently Asked Questions
Where can I buy Vishay CRHA1206AF30M0FKEF?
You can click on the BUY or RFQ button to purchase CRHA1206AF30M0FKEF from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRHA1206AF30M0FKEF?
You can download the CRHA1206AF30M0FKEF datasheet or visit the Vishay website for support.
Who is the manufacturer of CRHA1206AF30M0FKEF?
Vishay
