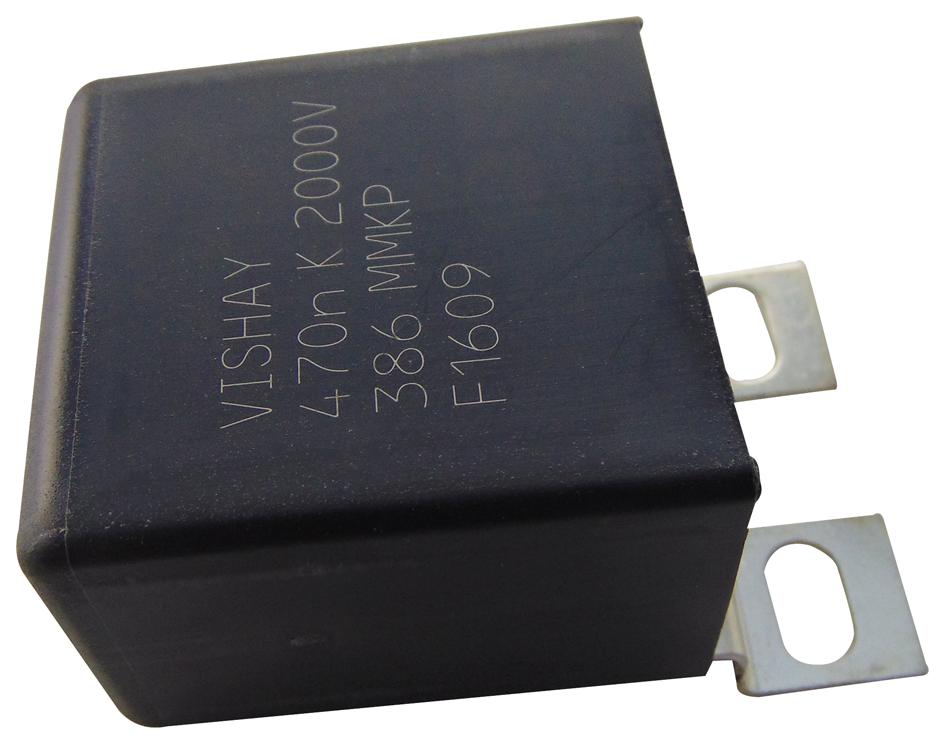

Vishay BFC238660474 High-Voltage Polypropylene Capacitor
The Vishay MMKP 386 series is a high-performance double metallized polypropylene film capacitor designed for industrial motor control circuits, including applications on IGBT or GTO modules. It features low inductive construction, high pulse ratings, and excellent stability at temperatures up to 85°C. Suitable for both AC and DC applications, these capacitors offer high reliability, rugged encapsulation, and are RoHS compliant. They are ideal for demanding environments requiring durable, high-voltage pulse capacitors with precise electrical characteristics and long operational life.
Vishay BFC238660474 High-Voltage Polypropylene Capacitor Specifications:
- Capacitance range: 0.1 pF to 4.7 pF
- Rated (DC) voltage: 630 V to 2500 V
- Rated (AC) voltage: 220 V to 900 V
- Peak-to-peak voltage: 630 V to 2500 V
- Temperature rating: 85°C
- Dielectric: Polypropylene film
- Construction: Double metallized, mono from 630 V, internal serial from 850 V
- Encapsulation: Flame retardant plastic case (UL-class 94 V-0) and epoxy resin
- Electrodes: Tinned coated copper
- Performance grade: Grade 1 (long life)
- Stability grade: Grade 2
- Impedance: Typical 15 nH at 100 kHz
- Insulation resistance: Exceeds 80 MΩ at 500 V
- Maximum AC voltage: Varies with voltage rating, up to 900 V
- Maximum permissible temperature: 85°C
- Climatic testing according to IEC 60684-1 50/085/56
- Vibration and shock resistant, suitable for direct mounting on power devices
Buy the Vishay Series MMKP Capacitor: BFC238660474
Order Vishay MMKP 386 series high-voltage polypropylene film capacitors online today. Engineered for industrial motor control and pulse applications, these reliable capacitors feature low inductance, high pulse ratings, and exceptional stability at temperatures up to 85°C. Perfect for rugged environments, they ensure long-term operation with optimal performance. Designed with flame-retardant encapsulation and precise electrical characteristics, these capacitors meet safety and durability standards. Buy online now for fast delivery and exceptional quality for your industrial projects.
Get Vishay MMKP 386 capacitor today—built for high pulse performance, industrial reliability, and long-lasting durability.
