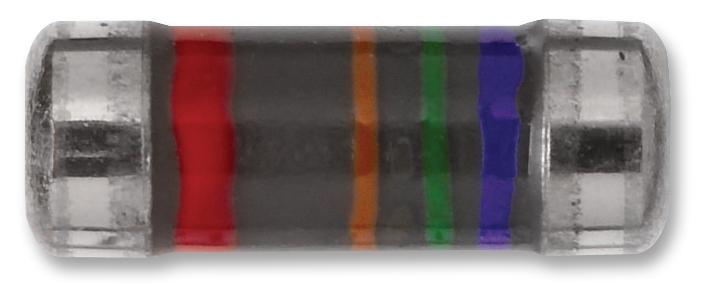

Vishay CMB02070X1501GB200 High Pulse Load Resistor
The CMB 0207 is a high pulse load carbon film MELF resistor suitable for demanding applications in automotive, telecommunication, industrial, and medical equipment. Manufactured with precise control, it features a homogeneous carbon film on a ceramic body, nickel-plated steel terminations, and a protective coating for durability. Designed to withstand surge voltages up to 10 kV and pulse capabilities up to 3 kW, this resistor offers excellent electrical, mechanical, and climatic protection, making it ideal for circuit protection against high-energy surge pulses in various environments.
Vishay CMB02070X1501GB200 High Pulse Load Resistor Specifications:
- DIN size 0207
- Resistance range: 2.2 Ω to 1.5 MΩ
- Resistance tolerance: ±5%, ±2%, ±1%
- Rated dissipation: 0.4 W (power mode), 1.0 W (standard mode)
- Operating voltage: 500 V maximum
- Operating temperature: -85°C to 155°C
- Film temperature maximum: 155°C
- Material: Homogeneous carbon film on high grade ceramic (Al2O3)
- Dimensions: Length 5.8 ± 0.15 mm, Diameter 2.2 +0/-0.2 mm
- Pulse load: single pulse up to 3 kW, continuous pulse capability available
- Surge voltage: up to 10 kV
- ESD capability: 16 kV human body model
- Compliance: RoHS, IEC 60065 safety requirements, AEC-Q200 qualified
- Soldering: Compatible with wave, reflow, vapor phase soldering; lead-free tin matte finish
- Storage life: Up to 20 years with maintained solderability and electrical properties
Buy the Vishay Series CMB 0207 High Pulse Load Carbon Film MELF Resistors: CMB02070X1501GB200
Order the Vishay CMB 0207 high pulse load carbon film MELF resistor online today and ensure your circuits are protected against high-energy surge pulses. These resistors offer surge voltages up to 10 kV and pulse capabilities up to 3 kW, making them perfect for automotive, telecommunication, industrial, and medical applications demanding robustness and durability. With a compact design, excellent climatic stability, and RoHS compliance, ensure your electronic systems operate reliably under demanding conditions by buying Vishay CMB 0207 resistors online today.
Get Vishay CMB 0207 high pulse load carbon film MELF resistors today—engineered for high surge voltage resilience and long-term reliability.
Frequently Asked Questions
Where can I buy Vishay CMB02070X1501GB200?
You can click on the BUY or RFQ button to purchase CMB02070X1501GB200 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CMB02070X1501GB200?
You can download the CMB02070X1501GB200 datasheet or visit the Vishay website for support.
Who is the manufacturer of CMB02070X1501GB200?
Vishay
